As industries continue to demand efficient and reliable material handling systems, the integration of Electric Overhead Traveling (EOT) cranes in Pre-Engineered Steel Buildings (PEBs) has become a standard practice. This integration not only maximizes operational efficiency but also ensures space optimization and cost-effectiveness. From manufacturing to warehousing, logistics, and fabrication units, EOT cranes serve as indispensable equipment, and their successful deployment within PEBs hinges on thoughtful design, planning, and coordination between structural and mechanical systems.
This article delves into the key aspects, benefits, challenges, and considerations for integrating EOT cranes into pre-engineered steel buildings.
Understanding EOT Cranes and PEBs

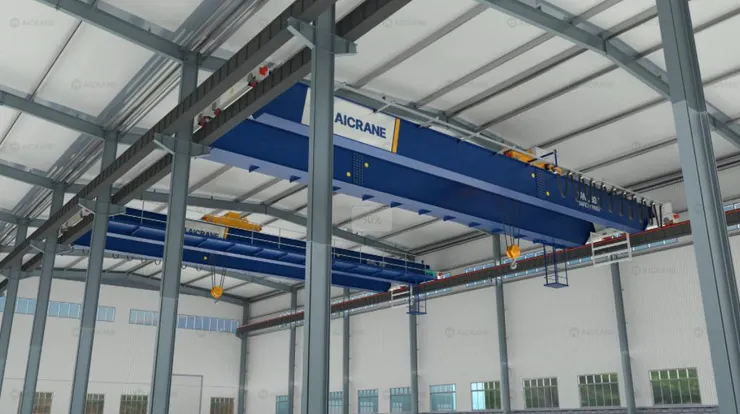

EOT Cranes, or Electric Overhead Traveling cranes, are overhead lifting systems that travel along rails installed on runway beams. They typically consist of a bridge, hoist, trolley, end carriages, and an electric control system. These cranes are used to lift, move, and precisely position heavy loads within a facility.

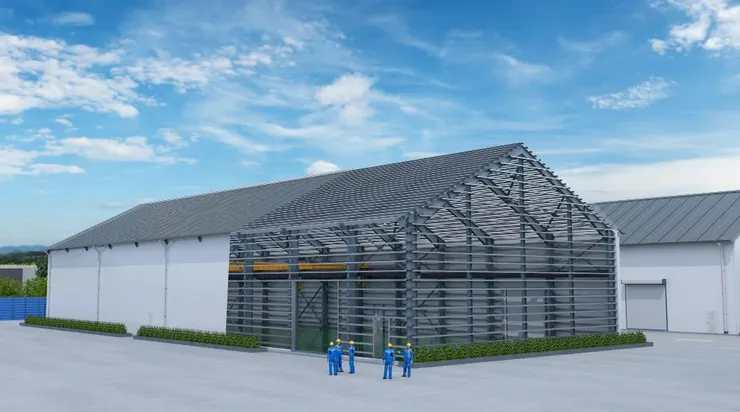

Pre-Engineered Steel Buildings (PEBs) are factory-fabricated, customized building systems made using standard structural components. These buildings are known for their cost-efficiency, quick installation, and adaptability to different applications, making them ideal for integrating EOT cranes.
Importance of Integration in the Design Phase
The integration of EOT cranes should be considered right from the design phase of the PEB. Unlike traditional buildings, PEBs rely heavily on optimized design parameters. The crane load, runway beam configuration, and support structure must be incorporated during the initial layout development to prevent retrofitting costs, structural failures, or operational inefficiencies.
Key parameters to consider in early design:
- Crane capacity and span
- Lifting height
- Wheel loads and impact loads
- Crane travel speed and frequency
- Hook approach and clearance
- Number of cranes and bay configurations
By accounting for these parameters upfront, engineers can ensure that the building structure is capable of safely supporting crane operations.
Structural Integration and Load Considerations
Integrating an EOT crane into a steel building requires structural modifications to support both static and dynamic loads. These include the dead weight of the crane, live loads during lifting, lateral thrust due to crane movement, and impact loads during load pickup or emergency stops.
Major load considerations include:
- Vertical loads: Caused by the weight of the crane and the lifted load.
- Lateral loads: Result from acceleration/deceleration of the crane.
- Longitudinal loads: Occur during crane braking or sudden directional changes.
- Impact factors: Applied to account for sudden jerks and overloads.
Proper calculation of these loads ensures that the columns, rafters, bracing, and runway beams are reinforced to support crane operations without failure or deflection.
Runway System and Crane Beam Design
A crucial component in EOT crane integration is the runway system, which includes runway beams and railings mounted on the main building columns or on independent support columns.
Types of runway systems:
- Top-running cranes: Require runway beams installed at the top of the supporting structure. Ideal for higher load capacities and greater lifting heights.
- Under-slung cranes: Travel on the lower flange of the runway beam. Suitable for smaller capacities and low headroom environments.
The crane beam must be designed to resist bending and deflection within permissible limits. Common materials used include fabricated box girders or rolled steel sections. Welding and bolting techniques are employed to attach rails to the runway beam, ensuring straightness and alignment for smooth crane travel.
Coordination Between Crane Supplier and Building Manufacturer
Successful integration depends on close collaboration between the PEB manufacturer and the EOT crane supplier. Information exchange regarding load data, mounting requirements, and dimensional specifications helps avoid conflicts between building components and crane systems.
The crane manufacturer must provide:
- General Arrangement (GA) drawings
- Load data and wheel loads
- Hook approach dimensions
- Clearance requirements
- Electrical and control panel layouts
The steel building manufacturer then incorporates these specifications into the structural model to ensure compatibility.
Electrical and Control Integration
Electrical integration is essential for the functionality and safety of the crane system. Power lines, busbars, control panels, and pendant stations must be installed in coordination with the building layout to minimize interference with lighting, ventilation, or other electrical systems.
Safety features such as limit switches, overload protection, and emergency shut-off systems must be incorporated into the control circuits. In some advanced installations, radio remote control or automated crane control systems are also integrated to increase operational flexibility.
Benefits of Integrating EOT Cranes in PEBs
The combination of EOT cranes with pre-engineered buildings offers numerous operational and economic advantages:
1. Space Optimization
Overhead cranes do not consume floor space, allowing full use of ground areas for material storage or movement.
2. Increased Efficiency
Fast and reliable material handling enhances productivity, particularly in repetitive manufacturing and heavy lifting operations.
3. Design Flexibility
PEBs can be customized to accommodate varying crane capacities, spans, and configurations.
4. Reduced Construction Time and Cost
Pre-engineered components and coordinated design between crane and building reduce erection time and associated costs.
5. Long-Term Durability
Properly integrated systems result in robust buildings with minimal maintenance requirements and high load-bearing capacity.
Challenges in Integration
Despite its benefits, integrating EOT cranes in PEBs poses several challenges if not carefully planned:
- Retrofitting limitations: Adding a crane system after building completion can be difficult and expensive.
- Misalignment issues: Poor design coordination can result in rail misalignment and uneven crane travel.
- Vibration and noise: Without proper damping or shock absorption, cranes can transmit vibration to the building structure.
- Safety risks: Inadequate structural support or electrical systems can lead to equipment failure or accidents.
These challenges highlight the need for skilled design, precise engineering, and experienced project execution.
Applications Across Industries
EOT cranes integrated within pre-engineered steel buildings are widely used in:
- Steel fabrication shops
- Automobile manufacturing units
- Power plants and substations
- Precast concrete factories
- Aerospace and defense workshops
- Machinery and equipment assembly lines
- Warehouses and logistics centers
The integration makes it possible to streamline production, reduce manual labor, and improve workplace safety.
Conclusion
Integrating EOT cranes in pre-engineered steel buildings is a strategic approach that empowers industries to handle heavy materials with precision, speed, and safety. However, to reap the full benefits, it is essential to consider crane integration from the early stages of design, involving collaboration between structural engineers, crane manufacturers, and building fabricators.
Whether it’s for manufacturing, assembly, or warehousing, this synergy between steel structures and overhead cranes results in stronger, smarter, and more productive industrial spaces. When executed properly, it lays the foundation for long-term operational success.
