The main girder is the backbone of any overhead crane, serving as the primary structural element that carries the hoist and trolley system while spanning the distance between crane runway rails. Proper design of the main girder is critical to ensure safety, operational efficiency, and longevity of the crane. Overhead cranes are widely used in industries such as steel manufacturing, power plants, shipyards, warehouses, and precast concrete facilities. Therefore, understanding the key considerations in main girder design is essential for engineers, overhead crane manufacturers, and facility managers.
1. Function and Role of the Main Girder
The main girder, also referred to as the bridge beam, supports the hoist and trolley, enabling horizontal movement across the span of the crane. Its primary responsibilities include:- Bearing the vertical loads of the hoist and its lifted materials.
- Resisting horizontal and torsional forces generated during crane operation.
- Maintaining structural stability over the entire span to prevent excessive deflection or bending.
- Ensuring smooth movement of the trolley and hoist to achieve precise load placement.
The performance of the crane heavily depends on the rigidity and strength of the main girder, making it a critical factor in the overall crane design.
2. Load Considerations
2.1 Lifting Load

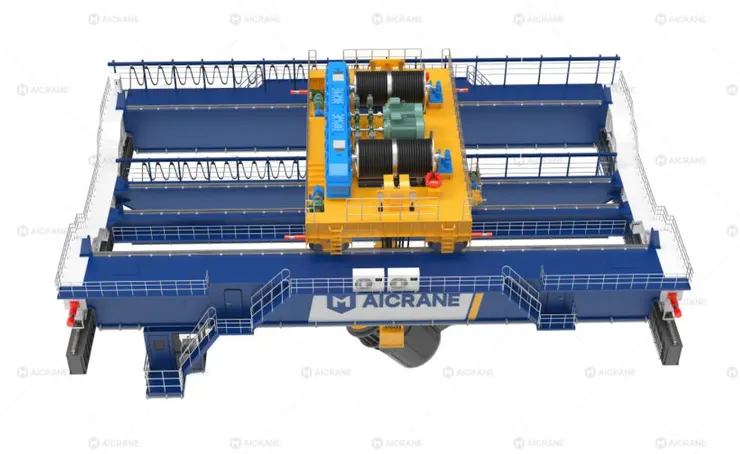

The main girder must safely support the rated load capacity of the crane, which includes the hoist weight, the weight of the trolley, and the maximum lifted load. For example, a 40-ton double girder overhead crane’s main girders must be designed to carry at least 40 tons plus the trolley and hoist weight, with additional safety factors.
2.2 Self-Weight
The weight of the main girder itself contributes significantly to the total load on the crane runway. Designers must account for this when calculating bending moments and shear forces. Using lightweight yet strong materials, such as high-strength steel, can reduce self-weight while maintaining structural integrity.
2.3 Dynamic Loads
Cranes in operation generate dynamic effects such as impact loads, acceleration, deceleration, and lateral forces. These effects can be more significant than static loads, especially in high-speed or heavy duty overhead cranes. Designers typically apply an impact factor, depending on the work duty classification (A3–A8), to ensure the main girder can withstand sudden stresses without permanent deformation.
2.4 Side Load and Torsion
During operation, side forces can arise from misalignment of trolley movement, uneven loading, or wind effects in outdoor applications. The main girder must resist torsional stresses to prevent twisting, which could impair trolley movement or lead to structural failure. Torsional rigidity is particularly important in long-span cranes, where the moment of inertia plays a critical role.
3. Structural Shape and Section Selection
3.1 I-Beam vs Box Girder
Two primary structural forms are commonly used for main girders: the I-beam (or European standard H-beam) and the box girder.
- I-Beam Girder: Often used in light to medium-duty cranes. Its advantages include simplicity, ease of fabrication, and cost-effectiveness. However, I-beams have lower torsional rigidity, making them less suitable for long spans or heavy loads.

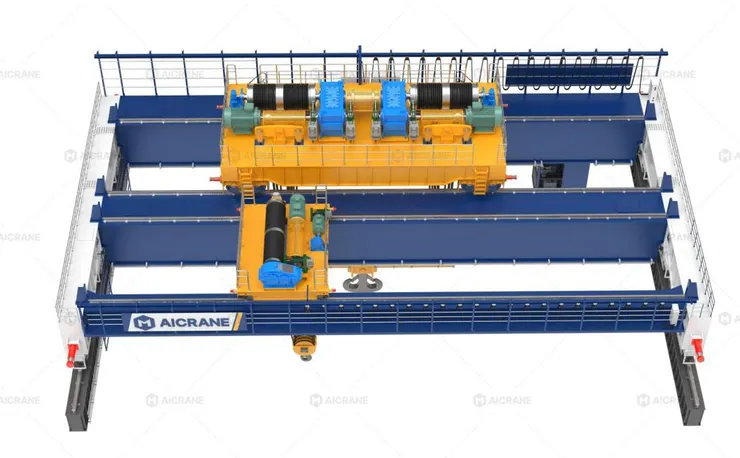

- Box Girder: Typically used for heavy-duty or long-span cranes. Box girders provide higher torsional stiffness, uniform stress distribution, and better resistance to lateral forces. They are often fabricated from welded plates with reinforced flanges and web stiffeners.
3.2 Web and Flange Thickness
The main girder’s web and flanges must be sized according to bending and shear requirements. The web primarily resists shear forces, while the flanges resist bending moments. Designers calculate required thicknesses using standard engineering formulas, considering allowable stress for the selected steel grade. Stiffeners are often added to webs in box girders to prevent buckling under high loads.
3.3 Camber
Camber refers to the intentional upward curvature built into the main girder during fabrication. This compensates for deflection under full load, ensuring the girder remains relatively level during operation. Proper camber reduces stress concentrations and improves trolley alignment, preventing uneven wear on crane wheels.
4. Span and Support Considerations
The main girder’s span—distance between runway rails—significantly influences its structural design. Longer spans require:
- Heavier or more rigid girder sections to minimize deflection.
- Additional stiffeners or cross bracing to resist torsion.
- Careful selection of hoist positions to balance loads and reduce bending moments.
Support conditions at the girder ends also affect design. For example, fixed supports can resist horizontal forces but induce additional bending moments, while simple supports allow rotation but require more robust web and flange design to handle vertical loads.
5. Material Selection
Steel remains the material of choice for crane girders due to its high strength, ductility, and availability. Common grades include Q235, Q345, or equivalent European standards (S235, S355). For specialized applications, such as marine environments or corrosive industries, coated or stainless steel may be preferred.
High-strength steel allows for slimmer girder sections, reducing weight while maintaining load capacity. Material selection must also consider weldability, fatigue performance, and environmental factors.
6. Fatigue and Durability
Overhead cranes are subjected to repeated loading cycles during operation. Fatigue failure can occur even when stress levels are below the material’s yield strength. To prevent this:
- Stress concentrations at welded joints or stiffeners should be minimized.
- Smooth transitions and fillets are preferred to reduce localized stress.
- High-quality fabrication and post-weld treatment can improve fatigue resistance.
7. Deflection and Vibration Control
Excessive deflection or vibration can compromise crane accuracy, safety, and service life. Designers limit deflection according to industry standards (e.g., ISO, FEM, CMAA) using formulas that consider span, load, and girder stiffness. For heavy-duty applications, dynamic analysis may be performed to predict resonance or oscillation under operating conditions.
8. Manufacturing and Assembly Considerations
Main girder fabrication involves cutting, welding, and assembling steel plates or sections. Key considerations include:
- Minimizing welding residual stress that can deform the girder.
- Ensuring precise dimensional tolerances for smooth trolley movement.
- Incorporating lifting points and crane assembly holes.
- Designing for transportation, especially for very long girders that may need splitting and on-site assembly.
9. Compliance with Standards
Overhead crane main girder design must comply with local and international standards to ensure safety and performance. Common standards include:
- ISO 4301 / ISO 9927 – General crane requirements and maintenance.
- CMAA Specification 70 – Standards for electric overhead traveling cranes in the U.S.
- FEM 1.001 / FEM 1.003 – European guidelines for crane design, including structural analysis and fatigue.
Compliance ensures the crane can operate safely under rated loads and environmental conditions.
10. Conclusion
The main girder is the most critical structural component of an overhead crane, directly affecting safety, operational efficiency, and longevity. Proper design requires careful consideration of load conditions, material selection, structural shape, torsional rigidity, deflection, fatigue resistance, and compliance with standards. Both I-beams and box girders have specific advantages depending on load capacity and span requirements. Additionally, manufacturing quality and assembly precision play a vital role in ensuring that the main girder performs reliably over years of operation.
By carefully analyzing these factors and applying engineering principles, designers and manufacturers can create main girders that provide maximum stability, efficiency, and safety for overhead crane operations across a variety of industrial applications.
