Bridge cranes are critical components in modern industrial operations, enabling the lifting and transportation of heavy loads with precision and safety. The structural design of these cranes must meet stringent criteria to ensure reliability, durability, and compliance with safety regulations. Several international organizations have developed comprehensive standards to guide the design, manufacturing, and operation of bridge cranes. Among the most widely recognized standards are those developed by FEM (Fédération Européenne de la Manutention), CMAA (Crane Manufacturers Association of America), and ISO (International Organization for Standardization).
This article provides an in-depth comparison and explanation of these three major bridge crane structural design standards, focusing on their design principles, classifications, applications, and global relevance.
1. Overview of Bridge Crane Design Standards
Bridge crane design standards offer a set of engineering guidelines and safety requirements to ensure structural integrity, operational efficiency, and personnel safety. These standards cover:
- Load classifications and duty cycles
- Structural stress limits
- Deflection limits
- Fatigue design
- Material specifications
- Inspection and maintenance guidelines
Understanding the differences and similarities among FEM, CMAA, and ISO standards is essential for manufacturers, engineers, and end-users selecting or designing a bridge crane for sale for specific industrial applications.

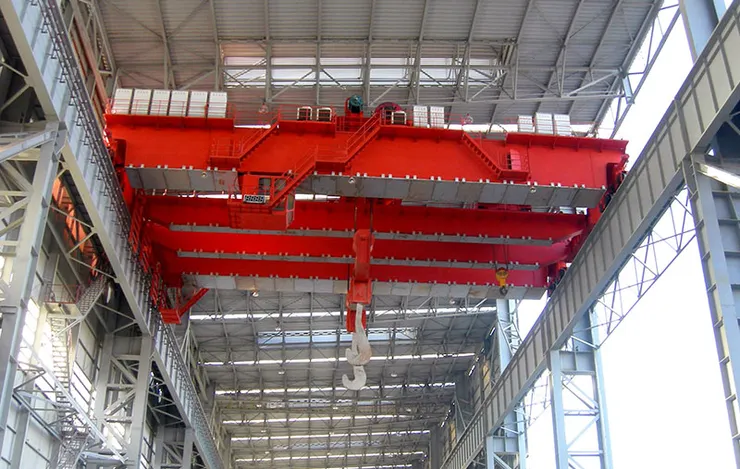

2. FEM Standards (European Standard)
FEM, or Fédération Européenne de la Manutention, is a European organization that provides technical guidance and classifications for lifting equipment, including bridge cranes. The most commonly referenced document for bridge cranes is FEM 1.001.
Key Features of FEM Standards:
a. Classification by Duty Group (1Am to 5m)
FEM divides cranes into duty classes based on operating conditions, such as frequency of use and average load. The duty classes range from 1Am (light duty) to 5m (very heavy duty).
- FEM 1Am: Light, infrequent use
- FEM 2m: Moderate usage
- FEM 3m: Heavy use in standard industrial settings
- FEM 4m: Intensive use (e.g., steel production)
- FEM 5m: Continuous operation in extreme environments
b. Load Spectrum
FEM defines the Load Spectrum (Q), a statistical representation of the variation of lifted loads. This includes light, medium, heavy, and very heavy load spectrums that guide fatigue design.
c. Structural Design Criteria
The FEM standard emphasizes fatigue-resistant design and the use of finite element analysis (FEA) in evaluating structural members. Allowable stress levels and deflection limits are also provided.
d. Metric System
FEM standards use the metric system, aligning with European norms.
e. Common Applications
FEM is widely used across Europe, Asia, and the Middle East, especially for custom-engineered cranes, automated material handling systems, and high-duty industrial applications.

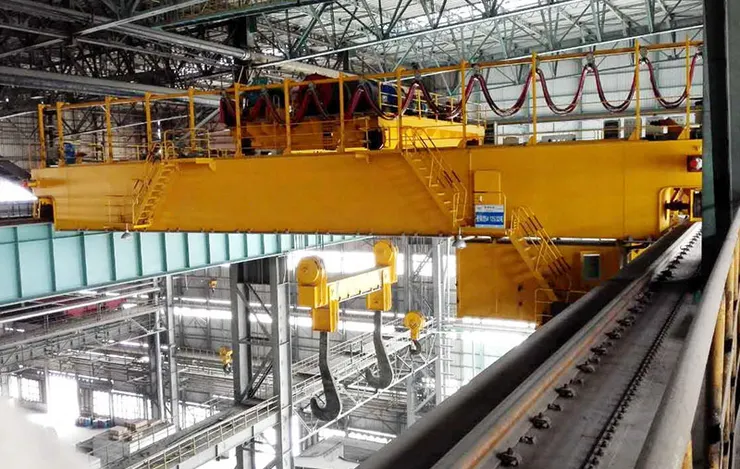

3. CMAA Standards (American Standard)
The Crane Manufacturers Association of America (CMAA) provides widely accepted standards for crane design, manufacturing, and operation in North America. The relevant document is CMAA Specification No. 70 (for top running bridge cranes and gantry cranes with multiple girders).
Key Features of CMAA Standards:
a. Classifications by Service (Class A to F)
CMAA divides cranes into six service classes, reflecting their intended operating frequency, load magnitude, and environment:
- Class A – Standby or infrequent service
- Class B – Light service (e.g., repair shops)
- Class C – Moderate service (general manufacturing)
- Class D – Heavy service (frequent handling of heavy loads)
- Class E – Severe service (e.g., steel mills)
- Class F – Continuous severe service
b. Allowable Stresses and Safety Factors
CMAA uses the Allowable Stress Design (ASD) method and prescribes safety factors for steel structures, wire ropes, hooks, and hoisting mechanisms.
c. Deflection Limits
CMAA limits bridge deflection to L/600 for normal-duty cranes, where L is the span. It also offers guidance on live load and dead load combinations.
d. Imperial System
CMAA uses imperial units (feet, pounds, psi), aligning with American industry norms.
e. Common Applications
CMAA standards dominate in the United States, Canada, and Latin America, suitable for manufacturing plants, warehouses, shipyards, and construction sites.
4. ISO Standards (International Standard)
The International Organization for Standardization (ISO) publishes internationally harmonized standards. For bridge cranes, relevant standards include:
- ISO 4301-5: Classification of cranes – Part 5: Overhead travelling and portal bridge cranes
- ISO 8686: Basis for calculations
- ISO 9927: Inspection procedures
- ISO 12482: Monitoring for safe use
Key Features of ISO Standards:
a. Classification by Group (A1 to A8)
ISO uses an A-classification system, from A1 (very light duty) to A8 (very heavy duty), based on load spectrum and operating time.
b. Global Applicability
ISO aims to provide a globally unified framework, facilitating trade and cross-border compliance. Many national standards (e.g., Indian, Australian) are based on or harmonized with ISO.
c. Structural and Fatigue Design
ISO emphasizes reliability-based design and fatigue life estimation using statistical methods. It integrates elements from both FEM and CMAA.
d. Metric Units
ISO uses the SI metric system, facilitating international engineering and manufacturing collaboration.
e. Common Applications
ISO standards are widely used in global engineering projects, infrastructure development, international crane exports, and government contracts.
5. How to Choose the Right Standard
Selecting the appropriate crane design standard depends on several factors:
a. Project Location
- North America: Prefer CMAA
- Europe, Middle East, Asia: FEM is standard
- Global/Mixed Projects: ISO is often required
b. Regulatory Requirements
Some regions or clients (especially in government or defense projects) specify certain standards to be followed for compliance.
c. Operational Conditions
Heavy-duty applications (steel plants, shipyards) benefit from FEM or ISO due to their stronger fatigue considerations.
d. Customization Needs
FEM and ISO allow greater flexibility for custom designs, while CMAA is ideal for standard cranes.
e. Export and Trade
For international trade, ISO and FEM standards are often more readily accepted than CMAA.
6. Conclusion
Understanding the structural design standards for bridge cranes is essential for safe and efficient crane operation. Each of the three major standards—FEM, CMAA, and ISO—offers a unique framework suited to different industries, regions, and application requirements.
- FEM excels in high-duty, fatigue-focused applications and is favored in Europe and parts of Asia.
- CMAA provides practical guidelines for North American markets with clearly defined service classes.
- ISO offers a harmonized international standard, ideal for projects spanning multiple countries and regulatory environments.
Whether you are designing, manufacturing, or purchasing a bridge crane, selecting the right standard ensures structural safety, longevity, and compliance with operational demands. For businesses involved in international crane supply, understanding and incorporating all three standards may be a strategic advantage.
