In secondary metallurgy and continuous casting, the slide gate system is an indispensable flow-control component that ensures stable, adjustable, and safe discharge of molten steel from the ladle or tundish. At the heart of this system lie the slide gate plates—high-performance refractory components engineered to withstand extreme thermal, mechanical, and chemical stresses. Their wear behavior directly affects casting stability, steel cleanliness, ladle lining life, and operational safety. Understanding the fundamental wear mechanisms of slide gate plates is therefore essential for metallurgists, refractory engineers, and plant operators aiming to optimize performance and minimize casting disturbances.
This article provides a detailed examination of the wear reasons for slide gate plates, covering thermomechanical factors, chemical attack, operational variables, design issues, and material-specific behavior.

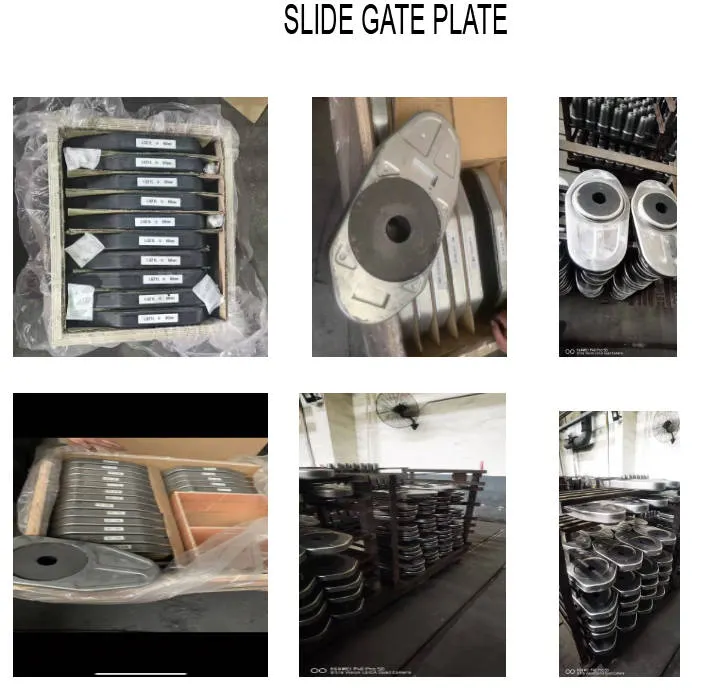

slide gate plate
1. Overview of the Slide Gate Plate Function
Slide gate plates control the flow of molten steel through a moving plate system. The typical configuration includes:
Upper nozzle (seat brick / collector nozzle)
Upper plate (fixed plate)
Lower plate (sliding plate)
Nozzle or ladle shroud connection
These plates are typically manufactured using high-purity alumina-carbon, alumina-zirconia-carbon (AZC), spinel-carbon, or in some cases, alumina-graphite composites. Their operational environment exposes them to temperatures exceeding 1600°C, high hydraulic pressure from molten steel, mechanical sliding friction, oxidation, and severe thermal gradients.
Given these harsh conditions, slide gate plates exhibit several characteristic wear forms, each driven by a distinct physical or chemical mechanism.
2. Major Wear Mechanisms in Slide Gate Plates
Slide gate plates are subjected to combined thermo-chemical-mechanical stresses, which lead to the following primary wear mechanisms:
2.1 Erosive Wear from Molten Steel Flow
One of the dominant wear mechanisms is hydrodynamic erosion. When the slide gate opening is adjusted, molten steel accelerates through a restricted nozzle area. The high-velocity flow impacts the refractory surface, causing:
Micro-fracture of alumina grains
Progressive removal of carbon binder
Scouring of the plate surface, especially near the bore
High turbulence at partial openings or during casting speed changes increases erosive wear significantly.
2.2 Corrosive Slag Attack
burned slide gate plate
During ladle operations, slag infiltration into the plate microstructure causes:
Decarbonization of the carbon matrix
Reaction between Al‚O and basic slag components
Softening and weakening of the refractory structure
In steel grades with high oxygen activity, slag-metal emulsions form at the plate surface, accelerating corrosion.
2.3 Oxidation of the Carbon Matrix
Carbon is a key component for thermal shock resistance and strength. However, carbon oxidation occurs due to exposure to:
High temperature air on the plate exterior
Oxygen present in molten steel at early casting stages
Atmospheric oxygen entering through microcracks
Oxidation reduces plate density and cohesion, weakening its structure and making it more susceptible to mechanical and erosive wear.
2.4 Mechanical Abrasion from Plate Sliding
During operation, plates slide against each other under high pressure via a hydraulic system. Mechanical wear results from:
Friction between the plate surfaces
Particle detachment at microscopic asperities
Potential misalignment causing localized wear grooves
This abrasion is unavoidable but can be mitigated by material selection and lubrication practices.
2.5 Thermal Shock Damage
Every preheat-to-casting cycle imposes extreme thermal gradients:
Preheating reaches 1000–1100°C
External surfaces cool when exposed to air
Molten steel contact produces rapid temperature spikes
These fluctuations cause microcracking, spalling, and structural fatigue. Thermal shock damage becomes more pronounced if:
Preheat temperatures are inconsistent
Plates are quenched by contact with cold air or water
Casting delays allow excessive cooling between heats
2.6 Mechanical Impact and Compression Failure
Slide gate plates experience intense mechanical loads:
Hydraulic pressure from clamping
Steel hydrostatic load from ladle weight
Shock from plate opening/closing dynamics
Rigid, brittle refractories like high-alumina plates are especially vulnerable to localized crushing near bolt seats or around the nozzle bore.
3. Detailed Reasons for Slide Gate Plate Wear
While the mechanisms describe how wear happens, operational and design parameters clarify why plates degrade. Below are the principal reasons behind excessive or premature wear.
3.1 High Oxygen Levels in Molten Steel
The oxidation potential of the molten steel is a major factor influencing plate wear. High oxygen levels cause:
Graphite oxidation at the plate bore
Increased viscosity and aggressiveness of tundish slag
Greater inclusion formation and deposition
These reactions degrade the carbon matrix, exposing alumina grains to irregular failure.
3.2 Aggressive Slag Compositions
The chemical nature of slag impacts slide gate longevity:
High FeO and MnO levels intensify corrosion
Basic slags attack alumina-rich plates
Fluoride-containing fluxes promote grain boundary melting
Slag infiltration leads to softening, destabilization, and surface erosion.
3.3 Casting Speed and Flow Rate Instability
Operational variability, such as changes in casting speed, affects flow dynamics:
High-speed flow increases erosion
Partial opening creates turbulent eddies
Sudden throttling causes pressure surges and mechanical shock
These conditions heavily influence plate bore enlargement and surface scouring.
3.4 Misalignment of the Slide Gate Assembly
Even minor misalignment causes uneven distribution of mechanical load, leading to:
Localized abrasion
Shear-induced microcracking
Uneven bore wear and leakage pathways
Misalignment is one of the most common causes of premature failure in poorly maintained or worn ladle gates.
3.5 Inadequate Preheating or Overheating
Temperature management is critical. Problems occur when:
Preheat is too short ’ thermal shock at first metal contact
Preheat is excessive ’ carbon oxidation and structural weakening
Heating is non-uniform ’ internal stress gradients
Ideal preheating ensures refractory stability while minimizing oxidation.
3.6 Poor Plate Material Selection
Different steel grades and casting conditions require specific plate formulations:
Basic oxygen steelmaking (BOF) heats require high corrosion resistance
Ultra-low carbon steels demand high purity AZC plates
High-cleanliness grades need plates with low porosity and anti-clogging additives
Using a mismatch leads to accelerated wear, bore choking, or plate failure.
3.7 Mechanical Overloading or Incorrect Clamping Force
The hydraulic system must maintain precise clamping pressure. Excessive pressure causes:
Localized crushing
Plate warping
Internal cracking
Insufficient pressure produces metal leakage and increased frictional wear during sliding.
3.8 Inclusion Deposition and Nozzle Clogging
Transitory inclusion buildup contributes to:
Localized thermal stress
Flow instability
Increased turbulence and erosion downstream
Inclusion deposition accelerates wear near the nozzle outlet and slide gate bore.
3.9 Interruption or Delay in Casting
Casting stops or delays cause plates to:
Cool unevenly
Accumulate slag crusts
Crack due to thermal cycling
Restarting casting after long delays often produces the highest wear rates.
4. Microstructural Factors Influencing Wear
Slide gate plates are engineered materials whose performance is tied to their microstructure. Wear behavior is heavily influenced by:
4.1 Grain Size and Bonding
Finer alumina grains improve strength, while coarse grains enhance erosion resistance. Poor bonding leads to grain pullout under flow.
4.2 Porosity
High porosity ’ easier slag penetration ’ rapid degradation.
4.3 Carbon Quality and Quantity
Graphite flake size and distribution determine resistance to thermal shock. Lower carbon reduces oxidation problems but compromises toughness.
4.4 Additives (Zirconia, Spinel, SiC)
These enhance corrosion resistance and high-temperature strength. Poor additive dispersion results in localized weaknesses.
5. Preventive Strategies to Reduce Slide Gate Plate Wear
Optimizing plate life requires a multi-disciplinary approach:
Control slag chemistry, minimizing FeO and aggressive fluxes
Optimize preheating cycles to reduce thermal stress
Ensure precise alignment of slide gate mechanisms
Use appropriate refractory materials based on steel grade
Maintain stable casting speeds and avoid sudden throttling
Improve tundish metallurgy to reduce inclusion clogging
Monitor hydraulic clamping pressures and maintain even loading
Implement real-time temperature and wear tracking
Plants combining these strategies typically extend plate life by 20–40%.
6. Conclusion
Slide gate plate wear is a complex phenomenon driven by the interaction of molten steel flow, slag chemistry, thermal gradients, oxidation, mechanical loading, and operational variability. Understanding the wear mechanisms—erosion, corrosion, oxidation, abrasion, thermal shock, and mechanical stress—is essential for diagnosing failure modes and implementing effective mitigation strategies.
By combining optimal refractory design, precise operational control, and disciplined maintenance practices, steel plants can significantly improve slide gate plate performance, enhance casting stability, and reduce production costs. As steelmaking progresses toward cleaner steel, tighter tolerances, and higher productivity, the importance of advanced slide gate materials and controlled operating environments will continue to grow.
