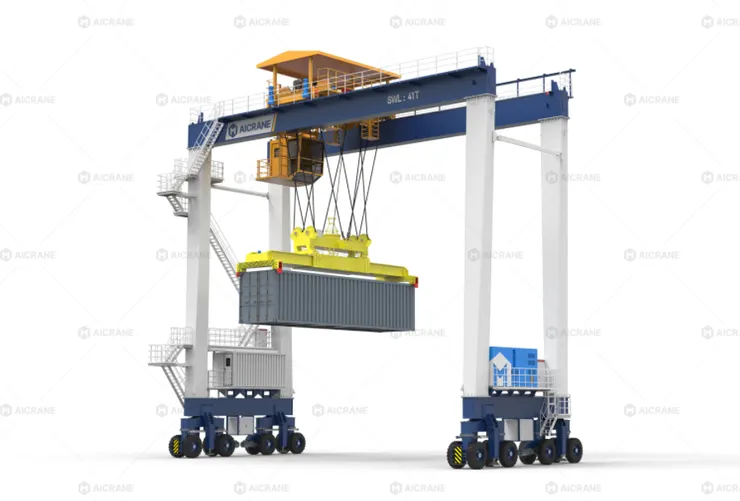

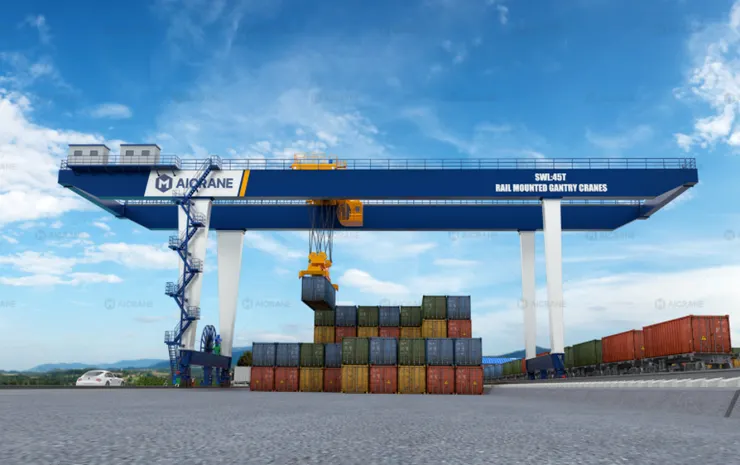

Port gantry cranes are pivotal to modern logistics and maritime operations, enabling efficient handling of shipping containers and bulk materials. These cranes, particularly Rubber Tyred Gantry (RTG) and Rail Mounted Gantry (RMG) cranes, are often massive in scale, with spans exceeding 30 meters and lifting capacities up to several hundred tons. While much attention is typically given to lifting capacities, structural integrity, and operational efficiency, environmental forces—especially wind loads—play a crucial role in the safe and effective design of port gantry cranes. Ignoring wind considerations can compromise crane stability, reduce operational efficiency, and even result in catastrophic failure.
In this article, we explore how wind load considerations affect port gantry crane design, focusing on structural engineering, operational safety, and regulatory compliance.
Understanding Wind Load and Its Impact
Wind load is the force exerted by air in motion on structures. For port gantry cranes, which often operate in open spaces near coastlines or large rivers, wind can be a significant source of stress. The impact of wind on a crane is not uniform; it can vary depending on the direction, speed, and turbulence of airflow.
The effects of wind on gantry cranes include:
- Lateral Forces: Wind exerts horizontal pressure on crane legs, girders, and the trolley. Excessive lateral force can cause swaying, compromising the crane’s precision in positioning containers and increasing the risk of collisions with other infrastructure or cargo.
- Uplift Forces: Strong vertical wind components can create partial uplift on the crane’s gantry or trolley, potentially destabilizing it, especially if it is lightly loaded or the load is suspended.
- Dynamic Oscillations: Gusty or turbulent wind can induce oscillations in the crane structure. Resonance effects, if coinciding with natural frequencies of the crane components, may amplify structural vibrations, leading to fatigue and long-term deterioration.
- Operational Interruption: High winds can restrict crane operation. Excessive wind speeds may require halting lifting activities to prevent accidents, impacting port throughput and efficiency.
Wind Load Considerations in Structural Design
Designing a port gantry crane to withstand wind involves careful analysis of structural elements and materials. Engineers consider several factors to mitigate the effects of wind:
1. Crane Geometry and Aerodynamics
The shape of the crane significantly affects how wind forces interact with its structure. For instance, cranes with open lattice-style booms or girders allow wind to pass through more easily, reducing lateral pressure compared to solid structures. Likewise, cantilevered booms and spreader bars are designed with aerodynamic profiles to minimize wind resistance.
2. Material Selection and Structural Reinforcement
High-strength steel and robust connection systems are standard in port crane construction. Wind load considerations often require reinforced beams, gusset plates, and bracing elements to resist lateral and torsional forces. For RTG cranes operating in regions with high wind speeds, designers may incorporate additional cross-bracing between gantry legs to enhance rigidity.
3. Leg Design and Base Stability
The crane’s legs and foundation are critical to resisting overturning moments caused by lateral wind forces. A wide base increases stability, while A-frame leg designs are often preferred for large container gantry cranes due to their inherent resistance to lateral loads. For RMG container cranes on rails, rail anchoring and ground reinforcement are designed to prevent tipping under wind pressure.
4. Counterweight Systems
Some large port cranes employ counterweights to balance lifting loads and enhance stability against wind. The positioning and weight of these counterweights are carefully calculated to offset overturning moments, especially during high wind conditions.
Wind Load Analysis and Standards
Designers rely on international codes and standards to calculate wind loads and incorporate safety factors into gantry crane design. Common standards include:
- ISO 12488: Guidelines for port cranes’ design and safety, including environmental load considerations.
- EN 1991-1-4 (Eurocode): Specifies wind actions on structures, providing formulas for wind pressure, gust effects, and terrain roughness factors.
- ASCE 7: Covers minimum design loads for structures, including wind, and is often used in regions like North America.
Wind load calculations take into account:
- Basic wind speed: Defined for the geographical location of the port.
- Exposure category: Open coastal areas have higher exposure to wind compared to enclosed or urban ports.
- Topography and shielding: Nearby buildings, containers, or natural barriers affect wind pressure distribution.
- Gust factor: Accounts for fluctuating wind speeds and dynamic effects.
These calculations help engineers define structural requirements, including maximum allowable stress on beams, foundation anchorage strength, and lateral support systems.
Operational Safety Considerations
Even with structurally robust designs, operational safety under wind conditions is paramount. Port cranes are equipped with sensors and systems to mitigate wind-related risks:
1. Wind Speed Monitoring
Anemometers installed on crane structures provide real-time wind speed data. When wind exceeds predefined thresholds, crane control systems automatically restrict trolley movement, prevent hoisting, or issue alerts to operators.
2. Anti-Sway and Locking Mechanisms
Some advanced gantry cranes include anti-sway technology that compensates for lateral load movement caused by wind. Additionally, locking mechanisms secure the trolley and boom in place when cranes are idle under high wind conditions.
3. Operational Protocols
Ports implement wind operation guidelines to prevent accidents. For example, during tropical storms or hurricane conditions, cranes are stowed in a safe configuration, hoisting operations are suspended, and cargo movement is minimized.
Economic and Maintenance Implications
Wind load considerations influence not only initial design but also maintenance and operational efficiency:
- Maintenance Costs: Reinforced structures and robust components designed for high wind resistance reduce long-term wear and fatigue. However, they may increase initial capital costs.
- Operational Downtime: Well-designed cranes that can tolerate moderate wind gusts with safety systems in place reduce downtime, maintaining port throughput and efficiency.
- Structural Fatigue: Regular inspections are needed to identify any wind-induced stress cracks, ensuring structural integrity over the crane’s lifespan.
Case Study: Coastal Port Gantry Cranes
Ports located in windy coastal regions, such as the Gulf of Mexico or Northern Europe, provide practical examples of wind load considerations. Here, cranes are often designed with:
- Wider A-frame legs for enhanced lateral stability.
- Lattice-type booms and girders to reduce wind resistance.
- Real-time wind monitoring systems integrated into automated crane controls.
- Strict operational thresholds that halt lifting when sustained wind speeds exceed 15–20 m/s.
These measures collectively ensure operational safety while minimizing downtime during adverse weather.
Conclusion
Wind load is a critical factor in the design, operation, and maintenance of port gantry cranes. From structural reinforcements and aerodynamic design to counterweights, leg configuration, and operational safety protocols, engineers integrate multiple strategies to mitigate wind risks. Adhering to international standards ensures that cranes remain stable, functional, and safe under a wide range of environmental conditions.
In an era where port efficiency directly impacts global trade, ignoring wind load considerations is not an option. By prioritizing wind-resistant design and incorporating advanced monitoring and safety systems, port operators can ensure the longevity of their gantry cranes, protect personnel, and maintain reliable cargo handling operations—even under challenging weather conditions.
