RTG Crane Lighting and Visibility for Night Operation

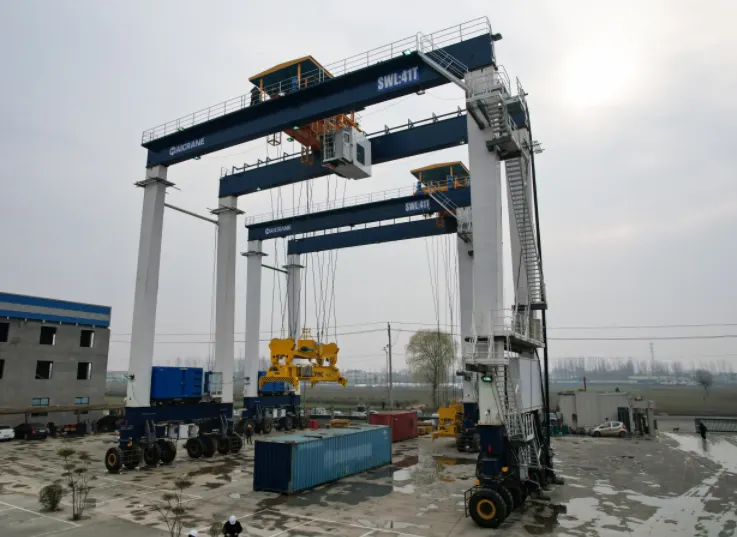

Rubber-Tyred Gantry (RTG) cranes are a backbone of modern container terminal operations. These mobile cranes, capable of stacking and moving containers with high efficiency, are vital for ensuring that ports meet the ever-increasing global demand for freight handling. While RTG cranes are designed for flexibility and heavy lifting, operating them safely and efficiently during nighttime presents unique challenges. Poor visibility, glare, shadows, and environmental conditions can significantly increase operational risks if not addressed with proper lighting and visibility systems.

In this article, we explore the critical aspects of RTG container crane lighting and visibility for night operations, examining technologies, design considerations, safety implications, and best practices.

Importance of Proper Lighting in RTG Crane Operations

RTG cranes operate in complex environments where precision is essential. Operators must maneuver containers over stacks, onto trailers, and into designated yard locations. Night operations introduce visual limitations, which can compromise both safety and efficiency. Inadequate lighting can lead to:

1. Operational Errors – Misalignment of spreaders with containers may damage cargo or equipment.
2. Increased Accident Risk – Poor visibility contributes to collisions with other cranes, vehicles, or personnel.
3. Reduced Efficiency – Slower crane movements may be required when operators cannot clearly see the load or surroundings.
4. Operator Fatigue – Straining to see in low-light conditions can lead to fatigue, reducing reaction times and increasing error rates.

Therefore, implementing proper lighting and visibility strategies is not merely a regulatory requirement but a crucial operational necessity. According to the International Maritime Organization (IMO) guidelines on port safety, lighting must ensure that all operational areas are adequately illuminated to prevent accidents during night-time container handling operations.

Key Lighting Considerations for RTG Cranes

RTG cranes face unique challenges due to their size, mobility, and the height at which containers are handled. Effective lighting design should consider the following:

1. Crane Work Area Illumination

The primary operational area includes the container stacks, truck lanes, and rail tracks. Lighting should be:

• Uniform: To prevent sudden changes in brightness that can cause temporary blindness.
• Shadow-Free: Avoiding shadows around the load and spreader is critical for safe container alignment.
• Adjustable: Modern RTG cranes often operate in varying conditions and heights, so adjustable lighting allows operators to direct light precisely where needed.

LED floodlights are increasingly preferred for their high intensity, energy efficiency, and long lifespan. According to the Illuminating Engineering Society (IES), LED lighting can improve visibility while reducing energy consumption by up to 50% compared to traditional metal-halide lamps.

2. Operator Cabin Visibility

The operator cabin is the command center for RTG cranes. Lighting must allow operators to see both the work area and control panels clearly. This involves:

• Anti-Glare Windows and Panels: Preventing direct light from the exterior from reflecting into the cabin.
• Instrument Lighting: Backlit controls and screens reduce eye strain.
• Peripheral Awareness: External cabin-mounted lights can illuminate the immediate surroundings for operator awareness of vehicles and personnel.

3. Obstacle Detection and Safety Zones

Many modern RTG cranes are equipped with night vision cameras, proximity sensors, and LiDAR systems. These tools enhance visibility beyond what human eyes can see, particularly in poorly lit or high-stacked areas. Proper illumination complements these systems by reducing blind spots and improving sensor performance.

4. Lighting for Yard Infrastructure

Yard lighting plays a pivotal role in night-time operations. High-mast lights provide broad illumination for container yards, while pole-mounted lights ensure even coverage in aisles and docking areas. Integration between crane-mounted lighting and yard lighting ensures consistent visual conditions and reduces operator adjustment time.

Challenges in Night-Time RTG Operations

Operating rubber tyred cranes at night presents several challenges:

1. Glare and Reflection: Light reflecting off containers, especially those with metallic surfaces, can temporarily blind operators. Using diffused lighting and properly angled fixtures mitigates this risk.
2. Shadow Formation: Cranes themselves can cast large shadows, obscuring container edges or obstacles. Multiple light sources positioned strategically reduce shadowing effects.
3. Weather Conditions: Fog, rain, or snow can scatter light and reduce visibility. In such cases, operators benefit from higher intensity and focused beam lighting, along with supplementary vision systems.
4. Human Factors: Night-time operations can lead to eye strain and fatigue. Lighting systems must support circadian rhythms by reducing flicker, harsh contrasts, and blue light glare, which can disrupt operator alertness.

Innovative Lighting Solutions for RTG Cranes

The container handling industry has increasingly adopted advanced lighting technologies to address night operation challenges:

• LED Lighting Systems: LEDs provide bright, energy-efficient, and long-lasting illumination. They offer excellent color rendering, making it easier to distinguish container markings and signals.
• Adaptive Lighting: Some RTG cranes use intelligent systems that adjust brightness based on ambient light conditions or operational tasks. For example, high-intensity lighting can activate when moving containers at greater heights.
• Directional Floodlights: Focused lights illuminate specific operational zones, reducing spill light and glare that can affect neighboring cranes or vehicles.
• Integrated Camera and Sensor Systems: Night vision cameras, thermal imaging, and load monitoring sensors supplement visual observation, enhancing both safety and efficiency.

These innovations improve visibility while maintaining energy efficiency and reducing maintenance costs.

Best Practices for RTG Crane Night Operations

Operators and terminal managers can implement several best practices to maximize safety and efficiency:

1. Conduct Regular Lighting Audits: Ensure both crane-mounted and yard lighting meet operational requirements. Replace failing or dim lights promptly.
2. Optimize Light Placement: Avoid placing lights where shadows will obscure critical operational zones. Combine high-mast and crane-mounted lighting for uniform coverage.
3. Implement Anti-Glare Measures: Use shields, diffusers, or directional lighting to minimize operator glare.
4. Use Supplementary Vision Systems: Cameras, sensors, and alarms complement human vision, particularly for high stacking or obstructed areas.
5. Operator Training: Educate operators on best practices for night-time navigation, including proper use of lighting systems and awareness of environmental hazards.
6. Maintenance Scheduling: Night operations require well-maintained lighting. Establish preventive maintenance schedules to ensure lights, sensors, and camera systems function optimally.

Regulatory and Industry Standards

Adhering to international standards ensures RTG crane night operations are safe and compliant. Relevant guidelines include:

• IMO Port Safety Guidelines: Recommend proper illumination of all operational areas in ports and container yards.
• Occupational Safety and Health Administration (OSHA) Guidelines: Specify requirements for workplace lighting to prevent accidents and injuries.
• Illuminating Engineering Society (IES) Recommendations: Offer detailed criteria for outdoor industrial lighting, including minimum lux levels, uniformity ratios, and glare control.

These standards help terminals design lighting systems that balance visibility, safety, and energy efficiency.

Industry Trends and Future Developments

The trend toward automation and smart port operations is transforming RTG crane night operations. Some key developments include:

• Automation-Ready Lighting: Fully automated RTG cranes rely on high-contrast, sensor-friendly lighting to optimize machine vision and navigation systems.
• Smart LED Networks: Integration of IoT-enabled lighting allows real-time monitoring of performance, predictive maintenance, and adaptive illumination.
• Augmented Reality (AR) Assistance: AR systems can overlay container positions and hazard warnings on operator displays, enhancing situational awareness during night shifts.

According to a 2023 report by the World Bank and the International Association of Ports and Harbors (IAPH), container terminals implementing advanced lighting and visibility solutions achieved up to a 20% increase in night-time operational efficiency and a significant reduction in safety incidents.

Conclusion

Proper lighting and visibility are fundamental to safe and efficient RTG crane operations during night-time shifts. By implementing a combination of well-designed crane-mounted lights, yard illumination, advanced sensors, and operator-focused cabin lighting, terminals can significantly enhance operational efficiency while minimizing safety risks.

With innovations such as LED systems, adaptive lighting, and smart sensors, the container handling industry is moving toward safer, more energy-efficient, and automation-compatible night operations. Terminal operators who invest in advanced lighting and visibility solutions not only comply with international safety standards but also gain a competitive advantage through higher productivity and reduced accident risks.

As ports continue to expand and operate around the clock, addressing night-time visibility challenges will remain a top priority, ensuring that RTG cranes remain a reliable and safe asset in the global logistics chain.
