本文將說明如何去辨識出圖片文字位置及高寬。

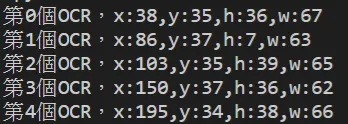

印出結果

測式圖

程式碼
import cv2
import numpy as np
def read_posion(img):
'''
輸入背景黑色,物件白色的圖
'''
num_labels, labels, stats, _ = cv2.connectedComponentsWithStats(img, connectivity=8)
components = []
# boxes_data = []
for i in range(1, num_labels): # 跳過背景
x, y, w, h, _ = stats[i]
components.append((x, y, w, h))
components.sort(key=lambda c: c[0]) # 按 x 座標排序
# 合併 x 軸在正負5範圍內的OCR
merged_components = []
current_component = list(components[0])
for i in range(1, len(components)):
if abs(components[i][0] - current_component[0]) <= 5:
current_component[0] = min(current_component[0], components[i][0]) # X 取最小值
current_component[1] = min(current_component[1], components[i][1]) # Y 取最小值
current_component[2] = max(current_component[2], components[i][2]) # w 取最大值
current_component[3] = abs(components[i][1] - current_component[1]) + components[i][3] # h 取 Y2 - Y1 + H2
else:
merged_components.append(tuple(current_component[:4]))
current_component = list(components[i][:4])
#合併最後一個OCR結果
merged_components.append(tuple(current_component[:4]))
return merged_components
img = cv2.imread(f'圖片路徑')
gray_img = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
box = read_posion(gray_img)
for i,data in enumerate(box):
x,y,h,w = data
#印出OCR 位置,高寬
print(f'第{i}個OCR,x:{x},y:{y},h:{h},w:{w}')
函式詳細說明
- 函式定義和參數:
- read_posion(img) 函式接受一個參數
- img:輸入的二值化圖像,背景是黑色,物件是白色。
- 計算連通域:
num_labels, labels, stats, _ = cv2.connectedComponentsWithStats(img, connectivity=8)
- 使用 OpenCV 的 connectedComponentsWithStats 函數計算連通域
- num_labels:連通域的數量。
- labels:標籤圖,每個連通域有一個唯一的標籤。
- stats:每個連通域的統計資料(x, y, w, h, area)。
- _:忽略的中心點資料。
- 提取連通域並存入列表:
components = []
for i in range(1, num_labels): # 跳過背景
x, y, w, h, _ = stats[i]
components.append((x, y, w, h)) - 遍歷 stats,跳過背景,提取每個連通域的位置信息和尺寸,存入 components 列表。
- 按 x 座標排序:
components.sort(key=lambda c: c[0])
- 將 components 按 x 座標進行排序。
- 合併相鄰的連通域:
merged_components = []
current_component = list(components[0])
for i in range(1, len(components)):
if abs(components[i][0] - current_component[0]) <= 5:
current_component[0] = min(current_component[0], components[i][0]) # X 取最小值
current_component[1] = min(current_component[1], components[i][1]) # Y 取最小值
current_component[2] = max(current_component[2], components[i][2]) # w 取最大值
current_component[3] = abs(components[i][1] - current_component[1]) + components[i][3] # h 取 Y2 - Y1 + H2
else:
merged_components.append(tuple(current_component[:4]))
current_component = list(components[i][:4])
merged_components.append(tuple(current_component[:4])) - 初始化 merged_components 列表和 current_component。
- 遍歷 components 列表,如果當前組件與前一組件的 x 座標差值在正負5範圍內,則合併它們。
- 合併後的結果存入 merged_components。
- 返回合併後的元件資訊:
return merged_components
- 返回合併後的元件資訊,這些資訊包括每個連通域的 x, y, w, h(左上角座標和寬高)。
