In today’s fast-paced industrial environment, material handling systems are expected to deliver high performance, safety, and precision. Among the most widely used equipment in heavy lifting applications is the double girder overhead crane, known for its robust structure and ability to handle substantial loads. However, as demand increases for faster, safer, and more efficient lifting operations, traditional systems must evolve. One of the most transformative advancements in overhead crane technology is the integration of anti-sway control systems.
This article explores how anti-sway control technology enhances the capacity and performance of double girder overhead crane for sale, enabling industries to lift heavier loads with greater precision and safety.

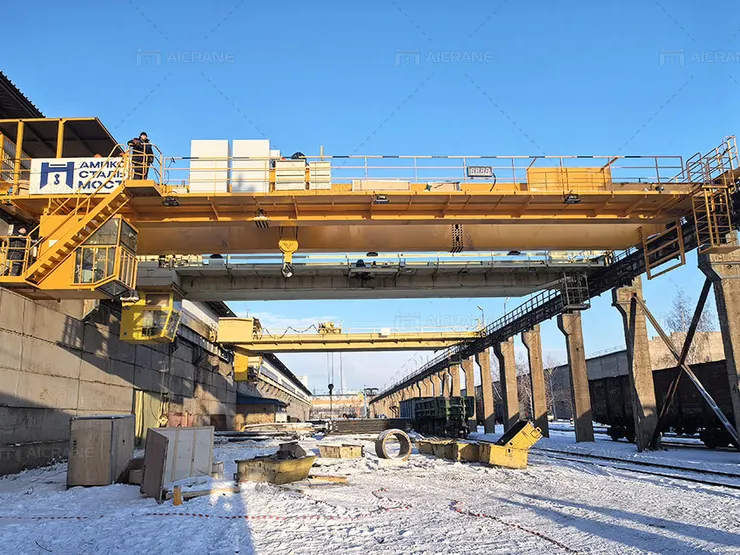

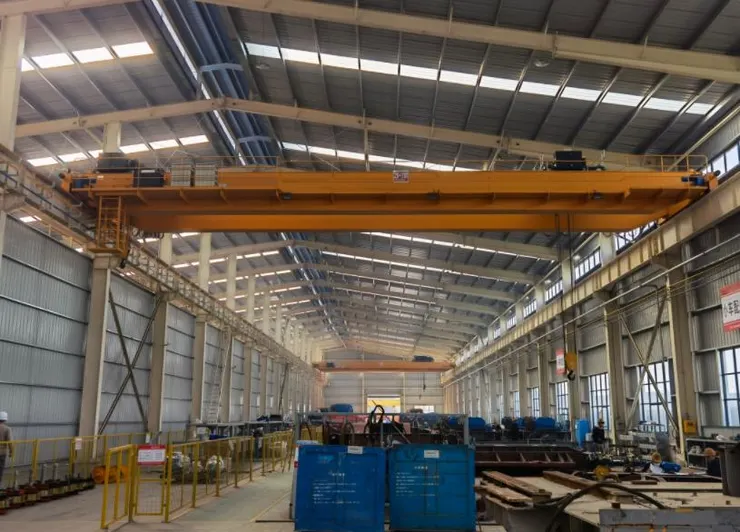

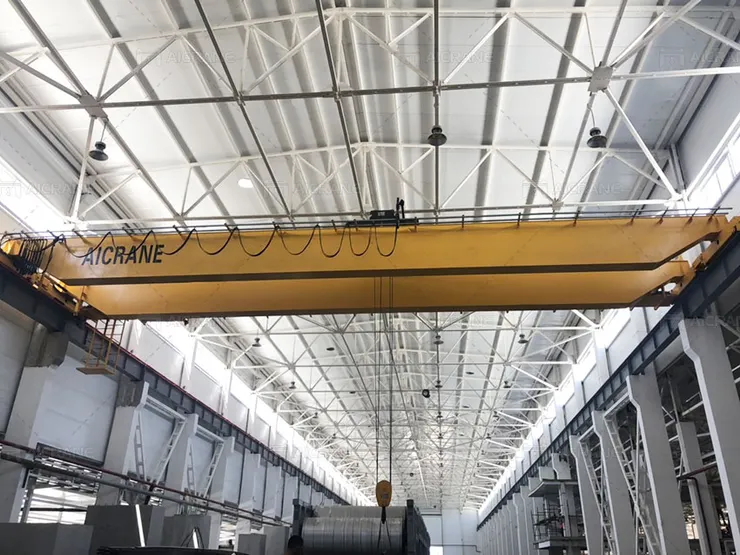

Understanding the Basics: Double Girder Overhead Cranes
A double girder overhead crane features two bridge girders that support the hoist and trolley, allowing it to lift heavy loads, typically ranging from 10 tons to over 500 tons. These cranes are ideal for heavy-duty applications such as steel mills, power plants, fabrication shops, and warehouses.The structure’s design allows:
- Higher lifting heights than single girder models.
- Better load distribution across the crane.
- Greater span lengths and load capacities.
But while these cranes are powerful, their performance can be hindered by one persistent challenge: load sway during movement.
The Sway Problem in Overhead Cranes
When a crane trolley moves a suspended load horizontally, the inertia can cause the load to swing like a pendulum. This phenomenon, known as load sway, poses several problems:
- Reduced operational safety: Swinging loads risk colliding with personnel, structures, or other equipment.
- Slower operations: Operators often slow down movements to reduce sway manually, limiting efficiency.
- Decreased positioning accuracy: It's difficult to place loads precisely when they’re swaying.
- Higher wear and tear: Repeated swing motion increases stress on crane components, especially ropes, brakes, and motors.
For high-capacity cranes such as 30 ton, 40 ton, 50 ton and 100 ton overhead cranes, where loads are extremely heavy and valuable, these issues become more serious. That’s where anti-sway control enters the picture.
What Is Anti-Sway Control Technology?
Anti-sway control technology is an advanced automation feature that uses control algorithms and sensors to minimize or eliminate the sway of a load during crane operation. There are two main types of anti-sway systems:
- Passive Systems: These rely on mechanical dampers or pendulum motion restraints.
- Active Systems: These use sensors, programmable logic controllers (PLC), and motor control systems to actively adjust crane speed and acceleration to counteract swing.
Most modern industrial cranes use active anti-sway systems, which provide real-time feedback and dynamic correction, leading to significant improvements in precision, safety, and speed.
Capacity Enhancement with Anti-Sway Technology
While anti-sway systems are often highlighted for safety benefits, they also have a direct and significant impact on crane capacity utilization:
1. Improved Load Handling Speed
With anti-sway technology, operators no longer need to wait for the load to settle between movements. This allows faster lifting cycles and higher throughput. A double girder crane equipped with an anti-sway system can complete more lifting tasks per hour, effectively enhancing productivity without upgrading the physical capacity of the crane.
2. Higher Operational Safety for Heavy Loads
For high-capacity cranes, even a small degree of sway can have dangerous consequences. Anti-sway control ensures safer handling of massive loads, enabling operators to confidently approach the crane’s rated capacity. This helps in utilizing the full potential of the crane rather than underloading it due to safety concerns.
3. Precision Positioning
Precision is especially critical in industries like aerospace, automotive, and power plant assembly. Anti-sway control allows cranes to accurately place heavy loads into tight spaces, increasing the crane’s effective handling capabilities and enabling more complex lifting operations.
4. Reduced Mechanical Stress and Longer Lifespan
Minimizing load swing reduces the strain on crane components like hoist ropes, gears, and brakes. This not only extends equipment life but also maintains the crane’s performance close to its design capacity over the long term.
5. Better Integration with Automation
As factories evolve into smart, automated environments, cranes need to be part of this digital ecosystem. Anti-sway systems can be integrated with other automated systems, allowing for fully synchronized, high-capacity lifting workflows, particularly beneficial in logistics, automotive, and shipbuilding sectors.
Industries Benefiting from Enhanced Double Girder Cranes
The integration of anti-sway control into double girder cranes has brought significant benefits to various industries:
- Steel and Metal Processing: Precise handling of steel coils, slabs, and beams requires both strength and accuracy.
- Power Generation Plants: Moving turbines, generators, and transformers safely is crucial to infrastructure projects.
- Construction and Precast: Transporting heavy concrete components in limited space benefits from reduced swing and higher control.
- Mining and Cement: Ensures safe and efficient transport of heavy mining machinery and equipment.
- Aerospace Manufacturing: Requires high precision and safety while lifting delicate and valuable parts.
Real-World Example
Consider a manufacturing plant using a double girder crane rated at 100 tons for moving turbine components. Traditionally, due to the sway risks, they would limit operations to 70-80% of rated load to allow for a safety buffer. However, with an integrated anti-sway system, the plant is now able to operate at full capacity, reduce load cycle times by 25%, and avoid costly damage caused by accidental collisions due to swing.
Implementing Anti-Sway in Existing Cranes
For facilities already using double girder overhead cranes, retrofitting with anti-sway technology is a practical and cost-effective upgrade. Most modern VFD-controlled (Variable Frequency Drive) cranes can be fitted with anti-sway controls by integrating:
- Sensors for trolley movement and load angle detection.
- PLCs or crane-specific control modules.
- Software algorithms for motion control adjustments.
Many overhead crane suppliers and automation companies offer such retrofitting solutions, often with minimal downtime.
Conclusion
Anti-sway control technology is revolutionizing the performance of double girder overhead cranes, not only by improving safety but by unlocking their full capacity potential. By eliminating one of the biggest limitations in load handling—swing—industries can now operate their cranes faster, more precisely, and closer to their rated limits.
For businesses seeking to enhance their lifting operations, investing in cranes equipped with advanced anti-sway systems, or retrofitting existing units, is a strategic decision that leads to greater efficiency, extended equipment life, and higher ROI. As industrial operations continue to demand higher performance, the integration of smart technologies like anti-sway control will become not just a benefit, but a necessity.
