CNN實作Kaggle貓狗影像辨識(Pytorch)

CNN是什麼?

資料集準備

程式實作

載入需要的Library

import torch
import torch.nn as nn
from torchvision import datasets ,models,transforms
from pathlib import Path
from matplotlib import pyplot as plt
import numpy as np
import torch.nn.functional as F
from sklearn.model_selection import train_test_split
import matplotlib.pyplot as plt
from torch.nn import Linear, ReLU, CrossEntropyLoss, Conv2d, MaxPool2d, Module
from torch.optim import Adam
import pandas as pd
import os
from os import listdir
from tqdm import tqdm_notebook as tqdm
from PIL import Image

準備資料、設定超參數

PATH_train="...../train"
TRAIN =Path(PATH_train)
#Batch：每批丟入多少張圖片
batch_size = 8
#Learning Rate：學習率
LR = 0.0001
transforms = transforms.Compose([transforms.Resize((224,224)), transforms.ToTensor()]

切分訓練驗證集

注意ImageFolder必須在資料夾內有子資料夾才可使用，所以我先分別把貓和狗的圖放進cat和dog的資料夾。

train_data = datasets.ImageFolder(TRAIN, transform=transforms)
#print(train_data.class_to_idx)
#切分70%當作訓練集、30%當作驗證集
train_size = int(0.7 * len(train_data))
valid_size = len(train_data) - train_size
train_data, valid_data = torch.utils.data.random_split(train_data, [train_size, valid_size])
#Dataloader可以用Batch的方式訓練
train_loader = torch.utils.data.DataLoader(train_data, batch_size=batch_size,shuffle=True)
valid_loader = torch.utils.data.DataLoader(valid_data, batch_size=batch_size,shuffle=True)

建立CNN的架構

最後也可以加一層Softmax讓兩者機率加起來為1如[0.7,0.3])

(weight-kernel+1)/stride+1 無條件進位

class CNN_Model(nn.Module):
    #列出需要哪些層
    def __init__(self):
        super(CNN_Model, self).__init__()
# Convolution 1 , input_shape=(3,224,224)
        self.cnn1 = nn.Conv2d(3, 16, kernel_size=5, stride=1)
        self.relu1 = nn.ReLU(inplace=True)
        # Max pool 1
        self.maxpool1 = nn.MaxPool2d(kernel_size=2)
# Convolution 2
        self.cnn2 = nn.Conv2d(16,8, kernel_size=11, stride=1)
        self.relu2 = nn.ReLU(inplace=True)
        # Max pool 2
        self.maxpool2 = nn.MaxPool2d(kernel_size=2)
# Fully connected 1 ,#input_shape=(8*50*50)
        self.fc = nn.Linear(8 * 50 * 50, 2)
    #列出forward的路徑，將init列出的層代入
    def forward(self, x):
        out = self.cnn1(x)
        out = self.relu1(out)
        out = self.maxpool1(out)
        out = self.cnn2(out)
        out = self.relu2(out)
        out = self.maxpool2(out)
        out = out.view(out.size(0), -1)
        out = self.fc(out)
        return out

定義訓練過程、計算Loss、Accuracy

1.train_loss和valid loss是算出每個batch的平均loss

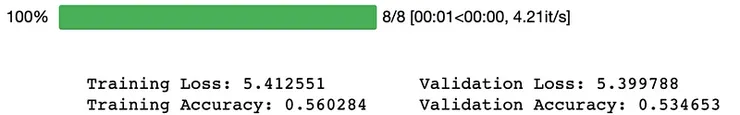

2.tqdm可以很好的跟data製作出進度條(如上圖)
3.model.eval()會關閉batchnorm、dropout，雖這範例沒有，但一般都會用到
4.output.data.max用來輸出較大的index如[0.487,0.9527]，則輸出1 P
5.Validation階段不需做BP，所以少了幾步

def train(model,n_epochs,train_loader,valid_loader,optimizer,criterion):
    train_acc_his,valid_acc_his=[],[]
    train_losses_his,valid_losses_his=[],[]
    for epoch in range(1, n_epochs+1):
        # keep track of training and validation loss
        train_loss,valid_loss = 0.0,0.0
        train_losses,valid_losses=[],[]
        train_correct,val_correct,train_total,val_total=0,0,0,0
        train_pred,train_target=torch.zeros(8,1),torch.zeros(8,1)
        val_pred,val_target=torch.zeros(8,1),torch.zeros(8,1)
        count=0
        count2=0
        print('running epoch: {}'.format(epoch))
        ###################
        # train the model #
        ###################
        model.train()
        for data, target in tqdm(train_loader):
            # move tensors to GPU if CUDA is available
            if train_on_gpu:
                data, target = data.cuda(), target.cuda()
            # forward pass: compute predicted outputs by passing inputs to the model
            output = model(data)
            # calculate the batch loss
            loss = criterion(output, target)
            #calculate accuracy
            pred = output.data.max(dim = 1, keepdim = True)[1]
            train_correct += np.sum(np.squeeze(pred.eq(target.data.view_as(pred))).cpu().numpy())
            train_total += data.size(0)
            # backward pass: compute gradient of the loss with respect to model parameters
            loss.backward()
            # perform a single optimization step (parameter update)
            optimizer.step()
            # update training loss
            train_losses.append(loss.item()*data.size(0))
            # clear the gradients of all optimized variables
            optimizer.zero_grad()
            if count==0:
                train_pred=pred
                train_target=target.data.view_as(pred)
                count=count+1
            else:
                train_pred=torch.cat((train_pred,pred), 0)
                train_target=torch.cat((train_target,target.data.view_as(pred)), 0)
        train_pred=train_pred.cpu().view(-1).numpy().tolist()
        train_target=train_target.cpu().view(-1).numpy().tolist()
######################
        # validate the model #
        ######################
        model.eval()
        for data, target in tqdm(valid_loader):
            # move tensors to GPU if CUDA is available
            if train_on_gpu:
                data, target = data.cuda(), target.cuda()
            # forward pass: compute predicted outputs by passing inputs to the model
            output = model(data)
            # calculate the batch loss
            loss =criterion(output, target)
            #calculate accuracy
            pred = output.data.max(dim = 1, keepdim = True)[1]
            val_correct += np.sum(np.squeeze(pred.eq(target.data.view_as(pred))).cpu().numpy())
            val_total += data.size(0)
            valid_losses.append(loss.item()*data.size(0))
            if count2==0:
                val_pred=pred
                val_target=target.data.view_as(pred)
                count2=count+1
            else:
                val_pred=torch.cat((val_pred,pred), 0)
                val_target=torch.cat((val_target,target.data.view_as(pred)), 0)
        val_pred=val_pred.cpu().view(-1).numpy().tolist()
        val_target=val_target.cpu().view(-1).numpy().tolist()

        # calculate average losses
        train_loss=np.average(train_losses)
        valid_loss=np.average(valid_losses)

        # calculate average accuracy
        train_acc=train_correct/train_total
        valid_acc=val_correct/val_total
train_acc_his.append(train_acc)
        valid_acc_his.append(valid_acc)
        train_losses_his.append(train_loss)
        valid_losses_his.append(valid_loss)
# print training/validation statistics
        print('\tTraining Loss: {:.6f} \tValidation Loss: {:.6f}'.format(
            train_loss, valid_loss))
        print('\tTraining Accuracy: {:.6f} \tValidation Accuracy: {:.6f}'.format(
            train_acc, valid_acc))
    return train_acc_his,valid_acc_his,train_losses_his,valid_losses_his,model

開始訓練囉~

model1=CNN_Model()
n_epochs = 10
optimizer1 = torch.optim.Adam(model1.parameters(), lr=LR)
criterion = CrossEntropyLoss()
train_acc_his,valid_acc_his,train_losses_his,valid_losses_his,model1=train(model1,n_epochs,train_loader,valid_loader,optimizer1,criterion)

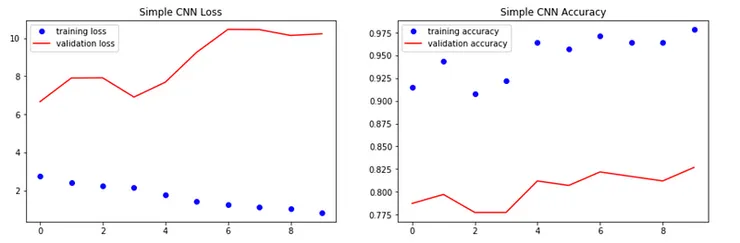

訓練結果、儲存Model

plt.figure(figsize=(15,10))
plt.subplot(221)
plt.plot(train_losses_his, 'bo', label = 'training loss')
plt.plot(valid_losses_his, 'r', label = 'validation loss')
plt.title("Simple CNN Loss")
plt.legend(loc='upper left')
plt.subplot(222)
plt.plot(train_acc_his, 'bo', label = 'trainingaccuracy')
plt.plot(valid_acc_his, 'r', label = 'validation accuracy')
plt.title("Simple CNN Accuracy")
plt.legend(loc='upper left')
plt.show()
torch.save(model1, "....../Dogcat_resnet18")
#model1 = torch.load('..../Dogcat_resnet18')

用自己的CNN參加Kaggle競賽

def test_submit(model,n_img,path):
    model.eval()
    pred_label=[]
    for i in tqdm(range(1,n_img+1)):
        path = image_path + str(i) +'.jpg'
        img = Image.open(path).convert('RGB')
        img = transforms(img)
        img = img.unsqueeze(0)
        with torch.no_grad():
            output=model(img)
        pred = output.data.max(dim = 1, keepdim = True)[1]
        pred_label.append(int(pred))
    return pred_label

image_path =’.../test/’
n_img=12500
pred_label=test_submit(model1,n_img,image_path)
submit = pd.read_csv('.../sample_submission.csv')
submit['label'] = pred_label
submit['label'] = submit['label'].astype(int)
submit.to_csv('..../submit_dogcat.csv', index= False)
