Port gantry cranes are among the most essential equipment in any port or container terminal. These towering machines are designed to move heavy cargo, such as containers, over long distances, either from ships to shore or from one location to another within the port. With their ability to handle vast quantities of containers, port gantry cranes play a pivotal role in the efficiency and productivity of the entire port operation.
There are various types of port gantry cranes, each designed to meet specific operational requirements and work environments. This article will provide a detailed comparison of the primary types of port gantry cranes, focusing on their design, advantages, and ideal applications. By the end of this guide, you will have a better understanding of which type of gantry crane suits your specific port needs.
1. Ship-to-Shore Gantry Cranes (STS Gantry Cranes)
Design and Function
Ship-to-shore (STS) gantry cranes are large cranes designed for container handling on container vessels. These cranes are typically located on the quayside, and they are used to load and unload containers between ships and the dock. Their key feature is their long reach, which allows them to lift containers directly from ships' holds, often at a height of 50 meters or more.
STS cranes have a trolley system that runs along the top of the crane structure, allowing it to move containers horizontally across the quay. The crane’s boom can be extended or retracted depending on the size of the vessel. Their high capacity and ability to move large quantities of containers efficiently make them indispensable in large, high-volume ports.
Advantages
- High Capacity: Capable of handling very large containers and high volumes of cargo.
- Long Reach: Can serve large container ships, even those with high cargo stacks.
- Precision Handling: Equipped with advanced anti-sway systems and remote controls for smooth operations.
Ideal Applications
- Major international ports with large container ships.
- Ports handling high volumes of containers.
- Locations where large container ships dock regularly.

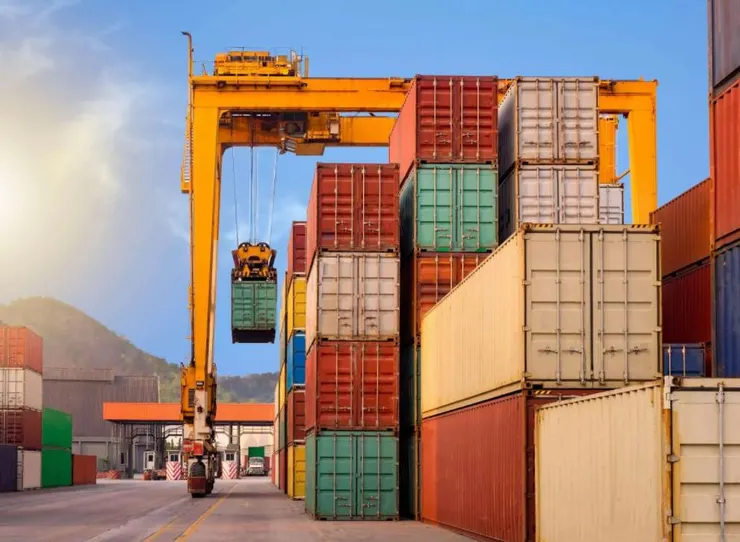

2. Rubber-Tyred Gantry Cranes (RTG Cranes)
Design and Function
Rubber-tyred gantry cranes (RTGs) are mobile cranes commonly used for container handling within the terminal yard. Unlike STS cranes, rubber tyred gantry RTG cranes are not fixed to the quay but instead sit on rubber tires, allowing them to move along the yard to lift and transport containers between trucks, trains, and ships. They are designed to be versatile and can navigate both narrow aisles and wider spaces within the yard, depending on the layout of the terminal.
RTGs are often used in ports with a significant amount of internal container movement. They are generally smaller in size compared to STS cranes but are capable of handling a variety of container sizes and lifting operations. RTGs can stack containers multiple layers high, improving storage density.
Advantages
- Mobility: They can move freely within the yard, offering flexibility in handling containers at different locations.
- Space Efficiency: Ideal for stacking containers in a limited space.
- High Lift Capacity: RTGs can handle both full and empty containers, with some cranes having a lifting capacity of up to 40 tons or more.
Ideal Applications
- Container terminals with smaller or medium-sized vessels.
- Ports with dense yard operations where space optimization is crucial.
- Terminals handling intermodal transport, such as rail and truck transshipment.

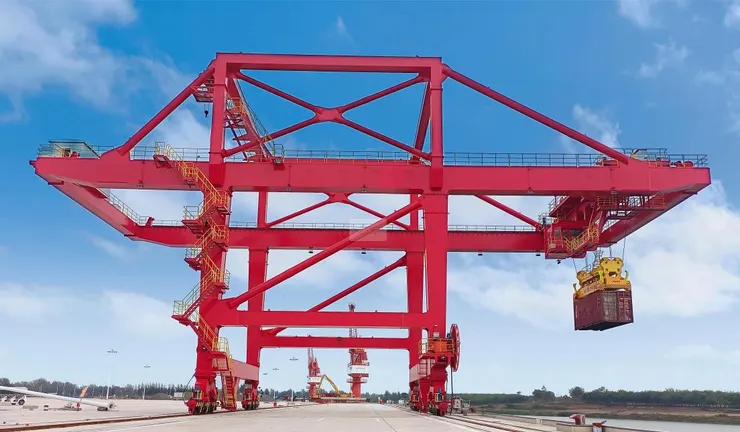

3. Rail-Mounted Gantry Cranes (RMG Cranes)
Design and Function
Rail-mounted gantry cranes (RMG cranes) are similar to RTGs in terms of their function but are mounted on fixed rails rather than rubber tires. These cranes are commonly used in container terminals where containers need to be moved between trucks, trains, and ships. Rail mounted gantry cranes are typically used in ports with rail access, allowing for the quick transfer of containers between vessels and rail cars.
RMG cranes can operate over long distances along the dock, providing increased precision in container movement and stacking. They are often used for yard stacking and for loading/unloading containers from trains and trucks. The fixed rail system allows for more stable operation, which is beneficial for handling heavy loads.
Advantages
- Stability: Fixed rails provide enhanced stability and accuracy in container handling.
- Heavy Lifting: RMG cranes are capable of lifting heavy containers and can handle large stacks in confined spaces.
- Energy Efficiency: Since the crane runs on fixed tracks, less energy is required compared to rubber-tyred cranes.
Ideal Applications
- Container terminals with significant rail-based container transport.
- Ports focused on rail-to-ship or rail-to-truck transshipment.
- Locations where stability and precise movements are crucial.
4. Mobile Gantry Cranes
Design and Function
Mobile gantry cranes are versatile, mobile machines designed for a range of applications. Unlike RTGs or RMGs, mobile gantry cranes can be used for a variety of tasks beyond container handling, such as moving heavy cargo, project cargo, or general materials. These cranes are typically mounted on a wheeled base or tracks, allowing them to move freely across various parts of a port.
Mobile gantry cranes are widely used in situations where portability is necessary, such as in smaller ports, shipyards, and construction sites. They are often seen in niche applications, such as loading or unloading cargo that doesn’t require the precise movement of containerized goods.
Advantages
- Versatility: Can be used for a wide range of cargo handling, including general goods and project cargo.
- Portability: These cranes can easily be relocated to different areas of the port.
- Low Operational Costs: They are generally more cost-effective compared to larger fixed cranes.
Ideal Applications
- Smaller ports or terminals with low to medium container volumes.
- Construction and shipyard operations requiring flexible handling solutions.
- Ports with specialized handling requirements, such as breakbulk cargo.
5. Post-Panamax Gantry Cranes
Design and Function
Post-Panamax gantry cranes are specialized cranes designed to handle the next generation of ultra-large container ships, especially those that exceed the traditional Panamax dimensions. With the expansion of the Panama Canal, larger ships that were previously unable to pass through the canal can now access a wider range of ports. Post-Panamax cranes are built to accommodate these larger vessels, often exceeding the reach and lifting capacity of standard STS cranes.
Post-Panamax cranes are much larger than conventional ship-to-shore cranes, with extended booms and more powerful lifting systems. These cranes can handle containers that are stacked higher and heavier than what previous generation cranes could manage.
Advantages
- Capacity for Larger Ships: Can handle the largest vessels currently in use.
- Extended Reach and Height: Designed to load and unload larger containers from towering cargo stacks.
- High Lifting Capacity: These cranes have significantly higher load limits compared to standard STS cranes.
Ideal Applications
- Ports that accommodate the largest container ships, such as post-Panamax vessels.
- High-volume, international ports with a focus on large-scale container transshipment.
6. Floating Gantry Cranes
Design and Function
Floating gantry cranes are typically used in deep-water ports or shipyards where large, heavy items need to be lifted directly from ships in port. These cranes are mounted on a floating platform, allowing them to operate in water, typically near dry docks or on barges. They are not as commonly used for container handling, but rather for heavy industrial lifting operations, such as handling shipbuilding components, large machinery, or offshore oil and gas equipment.
Advantages
- Flexibility: Can be used for various heavy lifting operations in areas where other crane types can’t operate.
- Water Access: Ideal for use in shipyards and offshore construction sites where conventional gantry cranes are not feasible.
Ideal Applications
- Heavy lifting for shipyards, offshore oil rigs, or industrial construction projects.
- Ports and terminals handling specialized or bulk cargo.
Conclusion
In conclusion, selecting the right type of port gantry crane is essential for optimizing port operations. Each crane type offers unique benefits depending on the specific needs of the port and the cargo being handled. Ship-to-shore gantry cranes are ideal for large international ports with high container throughput, while rubber-tyred gantry cranes and rail-mounted gantry cranes provide flexibility within the terminal yard. Mobile gantry cranes offer versatility, while post-Panamax cranes are essential for handling the latest generation of massive container ships.
Port operators must consider factors such as container volumes, terminal layout, cargo type, and infrastructure when choosing the best gantry crane for their needs. With advancements in crane technology, the port industry continues to evolve, pushing the boundaries of efficiency and automation to meet the demands of global trade.
