準備實作Async Fifo時,
我習慣將整個架構切成4塊來實作,
讓coding實的思緒比較有條理一點.

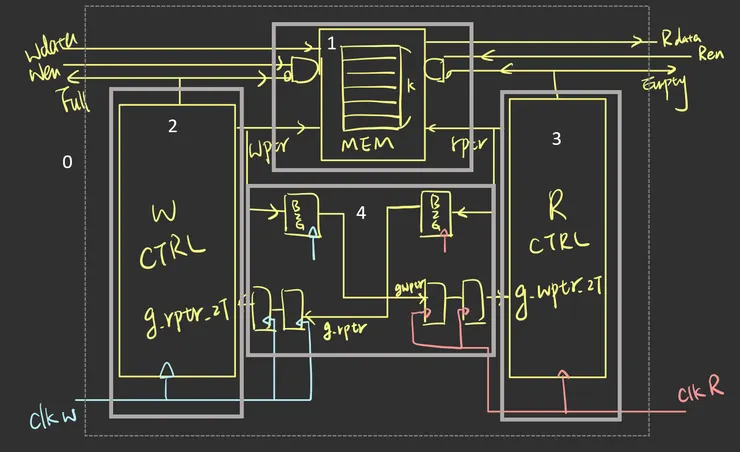

Block 0 : 整體的interface
Block 1 : mem周邊
Block 2 : Gray code pointer control
Block 3 : write controller
Block 4 : read controller
Block 0 : async fifo intf
module asyc_fifo # (
parameter width = 8 , // wdata bits
parameter depth = 8 // mem depth k
)
(
input clkw, // write clk
input clkr, // read clk
input rst_nw, // write rst_b
input rst_nr, // read rst_b
input [width-1 : 0] wdata,
output reg [width-1 : 0] rdata,
input wen, // write enable
input ren, // read enable
);
Block 1 : mem peripheral
如果mem是sram的話可以不用rst訊號, reg則可有可無,這個論述就留給大家思考思考
write : wen觸發且full未達標時,可將wdata寫入mem中的wptr位置上 (write clk)
