Precast bridge construction has become one of the most widely adopted methods in modern infrastructure development. Compared with traditional cast-in-place techniques, precast technology significantly improves construction efficiency, quality control, and project safety. Central to this production system is the gantry crane, which handles massive precast concrete girders throughout the manufacturing and logistics process.
Among the various lifting solutions used in precast beam yards, 200 ton gantry cranes play a particularly important role. These heavy-duty machines are designed to lift, transport, and position large concrete bridge girders that can weigh well over 100 tons and reach lengths of 30–40 meters. Their ability to safely handle such massive components makes them indispensable for bridge girder manufacturing plants.
This article explores the role of 200 ton gantry cranes in precast bridge girder production, including their working process, structural features, advantages, and key factors to consider when selecting the right equipment.
The Role of Gantry Cranes in Precast Bridge Girder Production
Precast bridge girder manufacturing typically takes place in specialized beam yards where concrete girders are cast, cured, stored, and prepared for transport to construction sites. Gantry cranes perform several critical tasks during this process.
A typical production workflow includes:
- Lifting girders from casting molds
- Transporting girders to curing or storage areas
- Stacking or arranging girders in beam yards
- Loading girders onto transport vehicles
- Supporting erection equipment when necessary
Large precast beams require specialized lifting equipment because of their extreme weight and length. A 30–40 meter box girder can easily weigh more than 150 tons. Therefore, heavy duty gantry cranes with capacities around 200 tons are commonly used in these facilities.
These cranes allow beam yards to move girders efficiently between production stages while maintaining strict safety and precision requirements.
Typical Specifications of a 200 Ton Gantry Crane
Although specifications vary depending on project requirements, most 200 ton gantry cranes designed for bridge girder manufacturing share several common parameters.
Typical technical specifications include:
- Rated lifting capacity: 200 tons
- Span: 20–50 meters
- Lifting height: 10–15 meters or customized
- Working duty: A5 or higher
- Control modes: Cabin control, remote control, or pendant control
- Hoisting mechanism: Electric winch or hoist trolley system

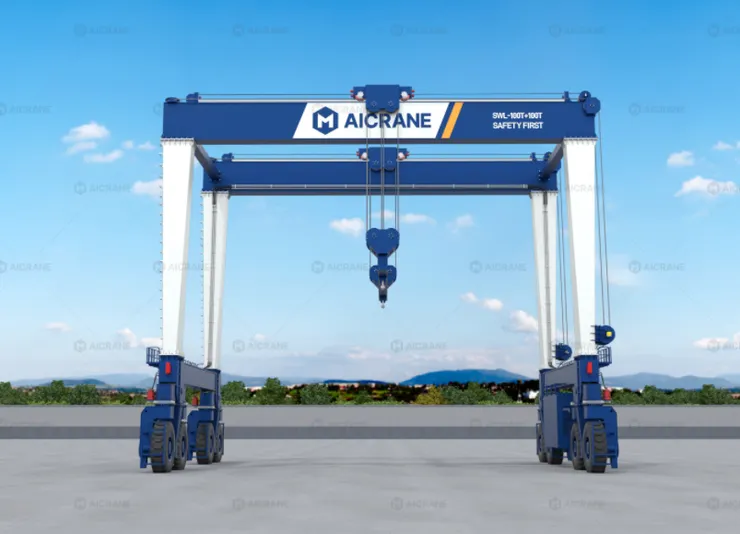

These cranes can be rail-mounted or rubber-tyred, depending on the layout of the precast yard and mobility requirements.
In many cases, a double girder gantry crane design is preferred for 200-ton operations because it provides greater structural strength, stability, and load distribution compared with single-girder systems.
Key Structural Features
Double Girder Structure
A double girder design is typically used for heavy lifting applications such as precast bridge girder manufacturing. This configuration improves load distribution and structural rigidity, allowing the crane to safely handle extremely heavy components.
Double girder gantry cranes are commonly used in highway bridges, high-speed rail viaducts, and other large infrastructure projects that require lifting capacities exceeding 100 tons.
Heavy-Duty Hoisting System
The hoisting mechanism usually consists of a large-capacity electric winch and trolley system. This mechanism ensures smooth lifting and precise positioning of long bridge girders.
Because precast beams must be handled carefully to avoid structural damage, the hoisting system is designed with:
- Variable frequency drive (VFD) control
- Smooth acceleration and deceleration
- Load monitoring systems
Specialized Lifting Tools
Bridge girders are long and heavy, so they require specialized lifting equipment such as:
- Spreader beams
- Multiple lifting points
- Adjustable hooks or clamps
These tools distribute the load evenly and prevent stress concentration in the concrete girder.
Intelligent Control Systems
Modern gantry cranes often include PLC control systems and safety monitoring devices that enable real-time monitoring of crane operation. This improves safety, operational efficiency, and equipment reliability.
Working Process in a Precast Girder Yard
A 200 ton gantry crane plays a central role throughout the precast girder manufacturing cycle.
1. Removing Girders from Casting Beds
After concrete is poured into molds and reaches the required strength, the gantry crane lifts the girder from the casting bed.
Because girders are extremely long, lifting operations often use two hoists or two cranes working simultaneously to ensure stability.
2. Transporting to Storage Areas
Once lifted, the crane moves the girder to a designated storage zone in the beam yard.
Some beam yards store girders in stacked configurations, which requires precise crane positioning.

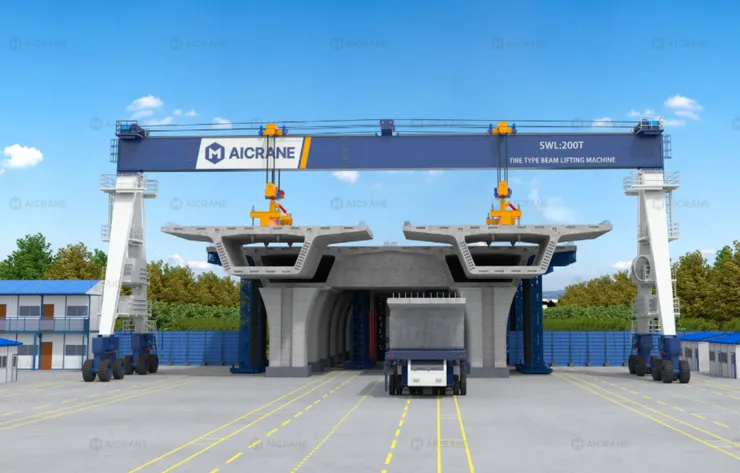

3. Loading onto Beam Transporters
When girders are ready for delivery to the bridge construction site, the gantry crane loads them onto specialized beam transport vehicles.
These transporters then deliver the girders to the construction location for final installation.
4. Supporting Bridge Erection Equipment
In some cases, gantry cranes also assist with assembling or positioning bridge launching gantries or erection equipment used at construction sites.
Advantages of Using 200 Ton Gantry Cranes
High Lifting Capacity
The most obvious advantage is the ability to handle extremely heavy loads. Bridge girders used in highway and railway infrastructure often exceed 100 tons, making 200-ton cranes ideal for these operations.
Efficient Yard Operations
Heavy-duty gantry cranes significantly improve the efficiency of precast yards by enabling quick movement of girders between casting, curing, storage, and shipping stages.
This streamlined workflow reduces project timelines and increases production capacity.
Flexibility and Adaptability
Gantry cranes can be installed in various configurations depending on the layout of the precast yard.
Common options include:
- Rail-mounted gantry cranes
- Rubber tyred gantry cranes (RTGs)
- Dual trolley systems
These configurations allow cranes to adapt to different production environments and project requirements.
Improved Safety
Handling massive concrete components presents significant safety challenges.
Modern gantry cranes address these concerns with features such as:
- Overload protection systems
- Anti-collision devices
- Limit switches
- Load monitoring sensors
These technologies reduce operational risks and ensure safe lifting operations.
Design Considerations for Precast Girder Manufacturing
When selecting a 200 ton gantry crane for a precast beam yard, several important factors must be considered.
Girder Dimensions and Weight
The crane capacity must exceed the maximum girder weight, including lifting accessories and safety margins.
For example, a 200 ton crane may be required for girders weighing 150–170 tons.
Yard Layout
The crane span should match the width of the beam yard, while the lifting height must accommodate stacking requirements.
Large precast yards may require cranes with spans exceeding 30 meters.
Lifting Method
Some projects use single-crane dual hoists, while others require two cranes operating simultaneously to lift extremely long girders.
The choice depends on girder length, yard layout, and operational requirements.
Environmental Conditions
Precast yards are often located outdoors, so cranes must be designed to withstand:
- Wind loads
- Temperature variations
- Dust and moisture
Heavy-duty steel structures and corrosion-resistant coatings help ensure long-term reliability.
Future Trends in Heavy-Duty Gantry Cranes
As infrastructure projects become larger and more complex, the demand for high-capacity gantry cranes continues to grow.
Several technological trends are shaping the future of these machines:
Automation and Smart Controls
Advanced automation systems are enabling semi-automatic crane operations, improving precision and reducing operator workload.
Remote Monitoring
Remote diagnostics and monitoring allow maintenance teams to track crane performance in real time and detect potential problems early.
Higher Capacity Equipment
Some modern precast beam yards now use cranes with capacities exceeding 500 tons or even 1000 tons, allowing them to handle extremely large bridge segments.
Conclusion
The rapid expansion of highway, railway, and urban infrastructure projects has driven widespread adoption of precast bridge construction methods. Within this production system, 200 ton gantry cranes play a crucial role in lifting and transporting massive concrete girders throughout the manufacturing process.
With their high lifting capacity, robust structural design, and advanced safety systems, these cranes enable precast beam yards to operate efficiently and safely. From removing girders from casting molds to loading them onto transport vehicles, the gantry crane serves as the backbone of modern bridge girder production.
As technology continues to advance, future gantry cranes will become even more intelligent, efficient, and capable, further supporting the growth of large-scale precast infrastructure projects around the world.
