AI說書 - 從0開始 - 527 | Stable Diffusion 之 Keras 實現 (編碼器)

我想要一天分享一點「LLM從底層堆疊的技術」，並且每篇文章長度控制在三分鐘以內，讓大家不會壓力太大，但是又能夠每天成長一點。

class TextEncoder(keras.Model):
	def __init__(self, max_length, vocab_size = 49408, name = None, download_weights = True):
		tokens = keras.layers.Input(shape = (max_length,), dtype = "int32", name = "tokens")
		positions = keras.layers.Input(shape = (max_length,), dtype = "int32", name = "positions")
		x = CLIPEmbedding(vocab_size, 768, max_length)([tokens, positions])
		for _ in range(12):
			x = CLIPEncoderLayer(768, 12, activation = quick_gelu)(x)
		embedded = keras.layers.LayerNormalization(epsilon = 1e-5)(x)
		super().__init__([tokens, positions], embedded, name = name)

		if download_weights:
			text_encoder_weights_fpath = keras.utils.get_file(origin = "https://huggingface.co/fchollet/stable-diffusion/resolve/main/kcv_encoder.h5",
			                                                  file_hash = "4789e63e07c0e54d6a34a29b45ce81ece27060c499a709d556c7755b42bb0dc4")
		  self.load_weights(text_encoder_weights_fpath)

當中程式說明為：

• keras.layers.Input(shape = (max_length,), dtype = "int32", name ="tokens")

1. 1. shape = (max_length,) 表示輸入的形狀是長度為 max_length 的一維向量，這通常代表 Token 序列的長度
   2. dtype = "int32" 定義輸入數據的資料型別為整數 (int32)，通常用於標記 Token IDs 編碼
   3. name = "tokens" 為此輸入層指定一個名稱 "tokens"，方便在模型中引用此層

• CLIPEmbedding(vocab_size, 768, max_length)([tokens, positions])

1. 1. CLIPEmbedding(vocab_size, 768, max_length) 是 CLIP 模型中的嵌入層，它接收詞彙表大小 (vocab_size)、嵌入維度 (768) 和最大序列長度 (max_length) 作為參數，將標記序列和位置轉換成 768 維的嵌入表示

• CLIPEncoderLayer(768, 12, activation = quick_gelu)(x)

1. 1. 12 表示多頭自注意力的頭數，即模型會使用 12 個不同的注意力頭來捕捉輸入中不同部分的相關性

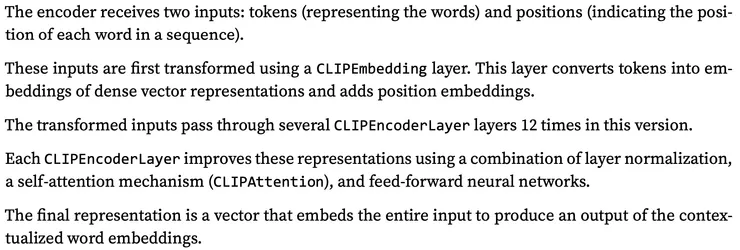

漂亮的原文說明為：

最後是原始元件的程式碼：

def quick_gelu(x):
    return x * ops.sigmoid(x * 1.702)




class CLIPEmbedding(keras.layers.Layer):
	def __init__(self, input_dim = 49408, output_dim = 768, max_length = 77, **kwargs)
		super().__init__(**kwargs)
		self.token_embedding = keras.layers.Embedding(input_dim, output_dim)
		self.position_embedding = keras.layers.Embedding(max_length, output_dim)

	def call(self, inputs):
		tokens, positions = inputs
		tokens = self.token_embedding(tokens)
		positions = self.position_embedding(positions)
		return tokens + positions




class CLIPEncoderLayer(keras.layers.Layer):
	def __init__(self, embed_dim, num_heads, activation = None, **kwargs):
		super().__init__(**kwargs)
		self.layer_norm1 = keras.layers.LayerNormalization(epsilon = 1e-5)
		self.clip_attn = CLIPAttention(embed_dim, num_heads, causal = True)
		self.layer_norm2 = keras.layers.LayerNormalization(epsilon = 1e-5)
		self.fc1 = keras.layers.Dense(embed_dim * 4) # Output Dimension is embed_dim * 4
		self.fc2 = keras.layers.Dense(embed_dim)
		self.activation = activation

	def call(self, inputs):
		residual = inputs
		x = self.layer_norm1(inputs)
		x = self.clip_attn(x)
		x = residual + x
		residual = x
		x = self.layer_norm2(x)
		x = self.fc1(x)
		x = self.activation(x)
		x = self.fc2(x)
		return x + residual




class CLIPAttention(keras.layers.Layer):
	def __init__(self, embed_dim = 768, num_heads = 12, causal = True, **kwargs):
		super().__init__(**kwargs)
		self.embed_dim = embed_dim
		self.num_heads = num_heads
		self.causal = causal
		self.head_dim = self.embed_dim // self.num_heads
		self.scale = self.head_dim**-0.5
		self.q_proj = keras.layers.Dense(self.embed_dim)
		self.k_proj = keras.layers.Dense(self.embed_dim)
		self.v_proj = keras.layers.Dense(self.embed_dim)
		self.out_proj = keras.layers.Dense(self.embed_dim)

	def reshape_states(self, x, sequence_length, batch_size):
		x = ops.reshape(x, (batch_size, sequence_length, self.num_heads, self.head_dim))
		return ops.transpose(x, (0, 2, 1, 3)) # bs, heads, sequence_length, head_dim

	def call(self, inputs, attention_mask = None):
		if attention_mask is None and self.causal:
			length = ops.shape(inputs)[1]
      attention_mask = ops.triu(ops.ones((1, 1, length, length), dtype = self.compute_dtype)* -float("inf"), k = 1)

		_, tgt_len, embed_dim = inputs.shape
		query_states = self.q_proj(inputs) * self.scale
		key_states = self.reshape_states(self.k_proj(inputs), tgt_len, -1)
		value_states = self.reshape_states(self.v_proj(inputs), tgt_len, -1)

		proj_shape = (-1, tgt_len, self.head_dim)
		query_states = self.reshape_states(query_states, tgt_len, -1)
		query_states = ops.reshape(query_states, proj_shape)
		key_states = ops.reshape(key_states, proj_shape)

		src_len = tgt_len
		value_states = ops.reshape(value_states, proj_shape)
		attn_weights = query_states @ ops.transpose(key_states, (0, 2, 1))

		attn_weights = ops.reshape(attn_weights, (-1, self.num_heads, tgt_len, src_len))
		attn_weights = attn_weights + attention_mask
		attn_weights = ops.reshape(attn_weights, (-1, tgt_len, src_len))

		attn_weights = ops.softmax(attn_weights, axis = -1)
		attn_output = attn_weights @ value_states

		attn_output = ops.reshape(attn_output, (-1, self.num_heads, tgt_len, self.head_dim))
		attn_output = ops.transpose(attn_output, (0, 2, 1, 3))
		attn_output = ops.reshape(attn_output, (-1, tgt_len, embed_dim))
		return self.out_proj(attn_output)

當中程式說明為：

• ops.triu(ops.ones((1, 1, length, length), dtype = self.compute_dtype)* -float("inf"), k = 1)

1. 1. 取得 inputs 的第二維度 (即序列長度)，並將其儲存在變數 length 中
   2. 生成一個大小為 (1, 1, length, length) 的矩陣，內容為 1，並轉換為模型的計算精度 self.compute_dtype
   3. 使用 ops.triu 函數，這個矩陣會被轉換為上三角形矩陣，並乘以 -float("inf")，因此除對角線下方為 0 外，其餘位置都會變成 -inf
   4. k = 0 會將主對角線及以上的元素設為 -inf，k = 1 則從主對角線上方一條對角線開始設為 -inf，主對角線元素不變
   5. 這樣的矩陣讓模型在計算注意力分數時，忽略掉未來的序列資訊，防止模型在自回歸的情境中窺探未來的資訊
